Hydrosanitary line Industrial line Taps Public taps Connectors

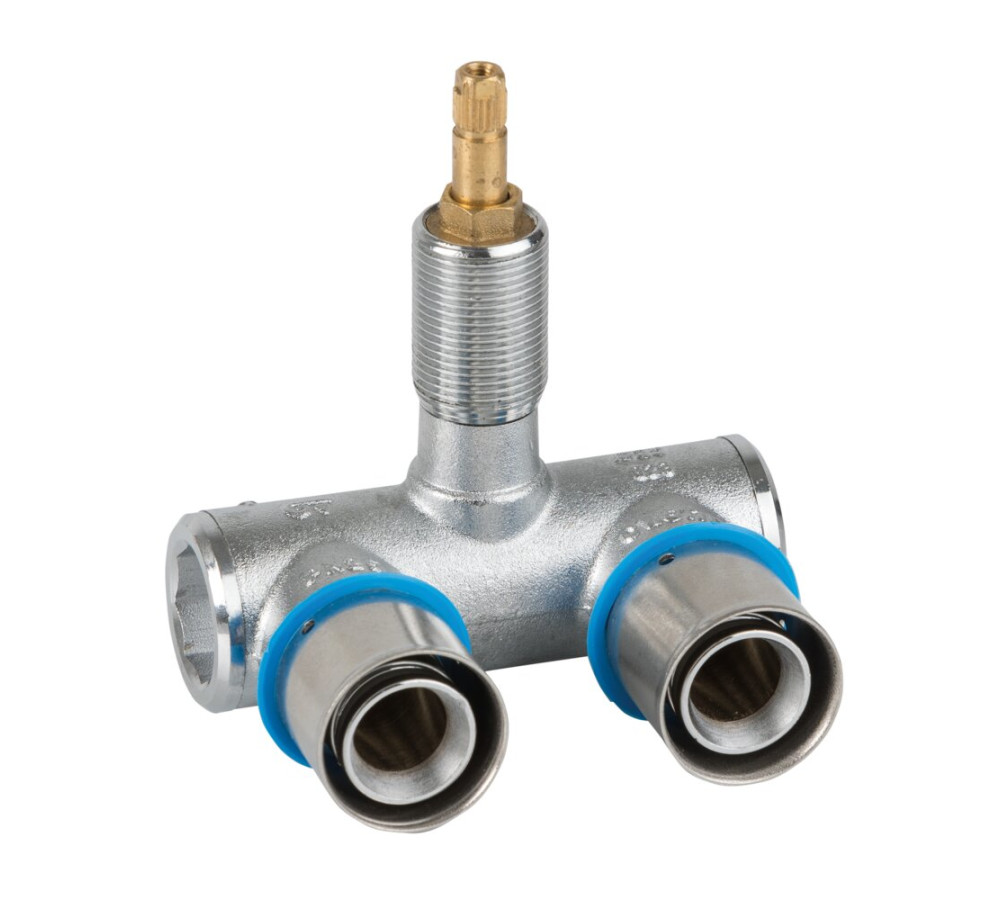

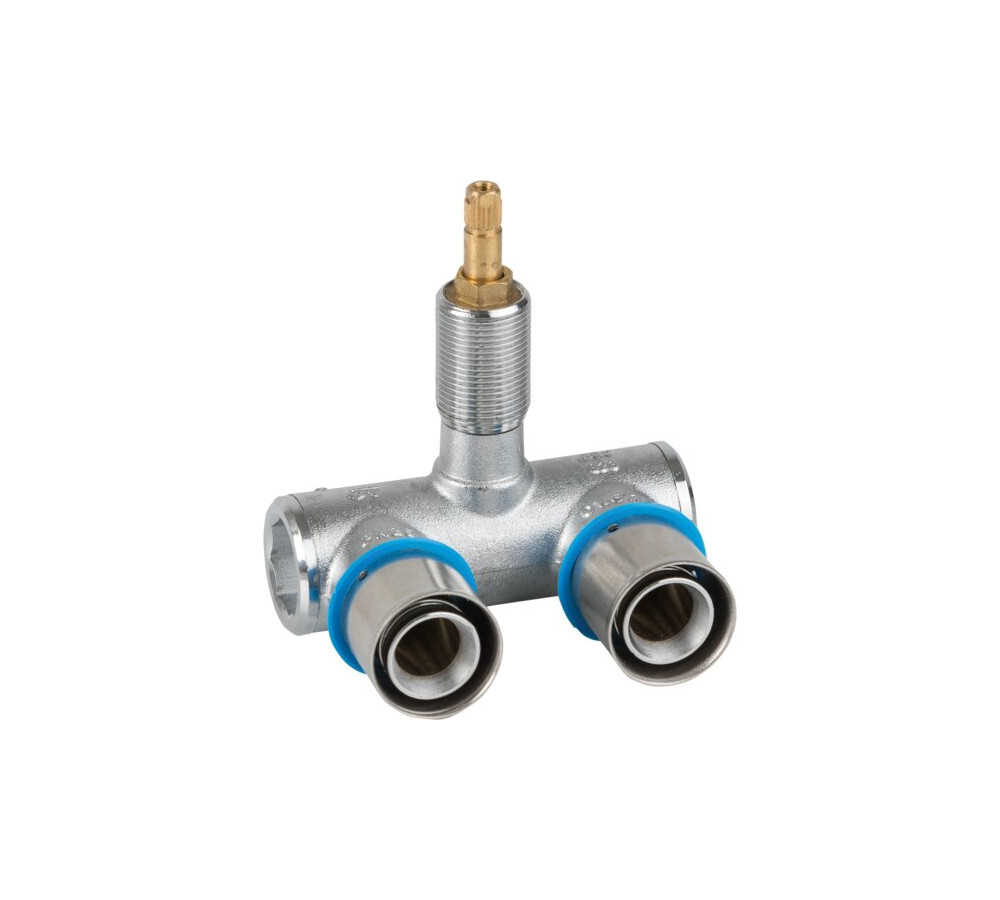

"U" built-in ball valve Pex and Multilayer pipe with press sockets

PN 25. Standard bore. Body chrome plated brass UNE-EN 12165. PTFE seats.
AISI 304 stainless steel press sockets. Anti-electrolysis ring.
EPDM joints. Max. Temp. 110ºC.

Reference: 3184

See Technical Sheet

Consult product

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
3184 20	V.EMP"U"TUB PEX Y MULTICAPA 20	1	0.293	6/60
3184 25	V.EMP"U"TUB PEX Y MULTICAPA 25	4	0.457	4/40

Technical Assistance

902 504 203

Monday to Thursday from 8:30 a.m. to 1:30 p.m. and from 3:00 p.m. to 6:00 p.m. Friday from 8:00 a.m. to 4:00 p.m.
