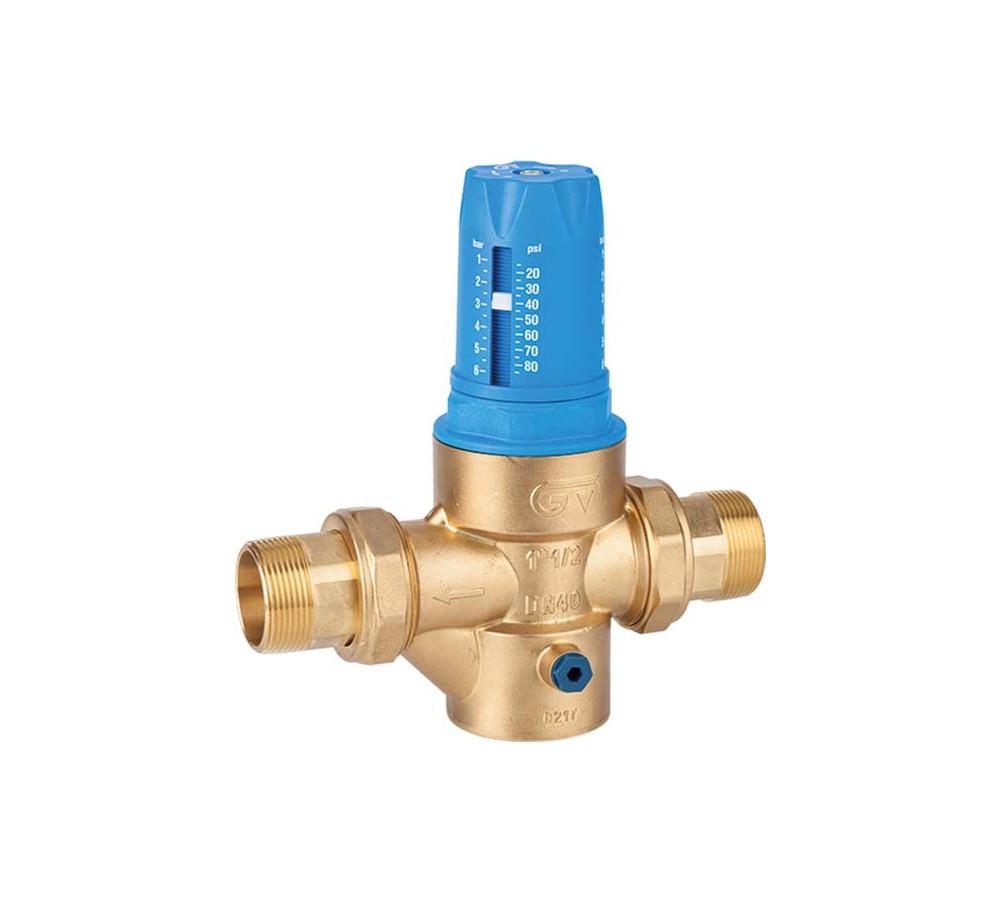

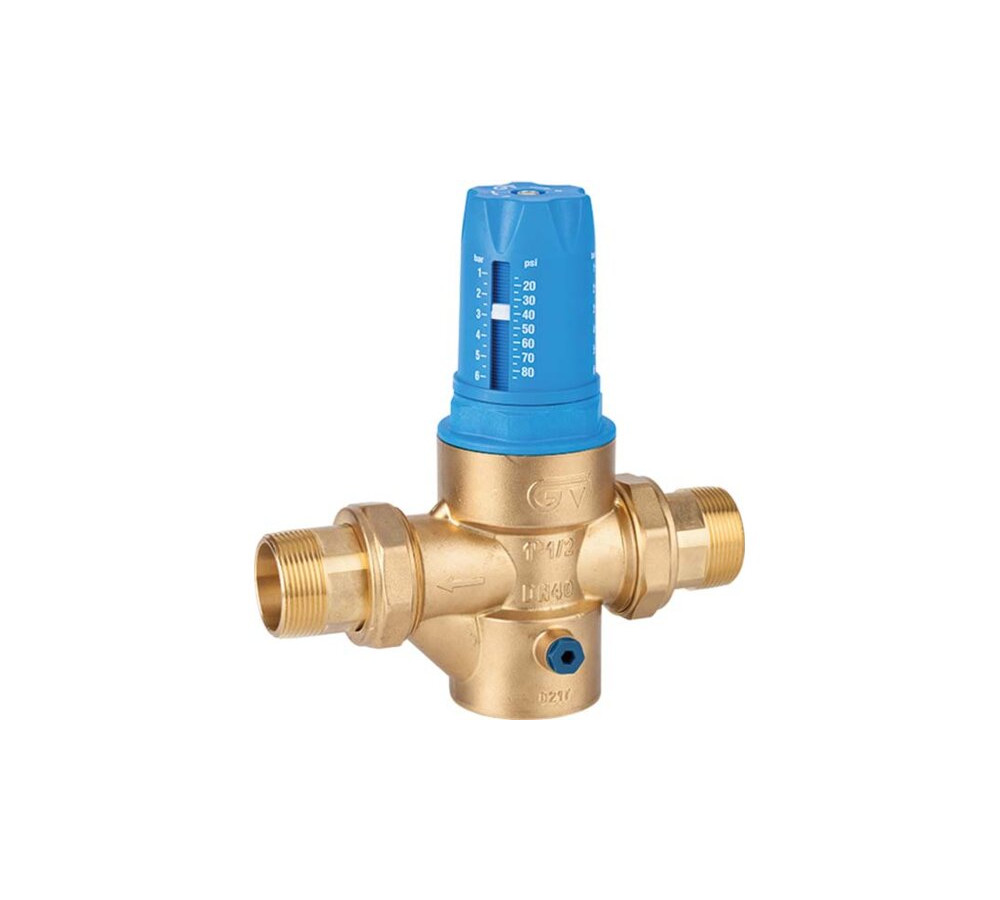

Membrane pressure reducing valve

PN 25. DZR anticorrosion brass construction UNE-EN 12165.
EPDM membrane with polyamide reinforced. Filter stainless steel AISI 304, 500 microns. EPDM joints. Steel galvanized spring. Threaded ends with taper connectors M-M EN 10226. Max. working temp. 80ºC. Max. working pressure 25 bar. Adjustable range from 1 to 6 bar. Outlet setting pressure 3 bar.

Reference: 3342

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3342 04 MEMBRANE PRESSURE REDUCER VALVE 1/2" 1 0.77 1/18
3342 05 MEMBRANE PRESSURE REDUCER VALVE 3/4" 1 0.97 1/18
3342 06 MEMBRANE PRESSURE REDUCER VALVE 1" 1 1.595 1/12
3342 07 MEMBRANE PRESSURE REDUCER VALVE 1"1/4 1 1.83 1/12
3342 08 MEMBRANE PRESSURE REDUCER VALVE 1"1/2 1 3.08 1/1
3342 09 MEMBRANE PRESSURE REDUCER VALVE 2" 1 4.25 1/1
3342 12 4" DN-100 1 1 1/1
