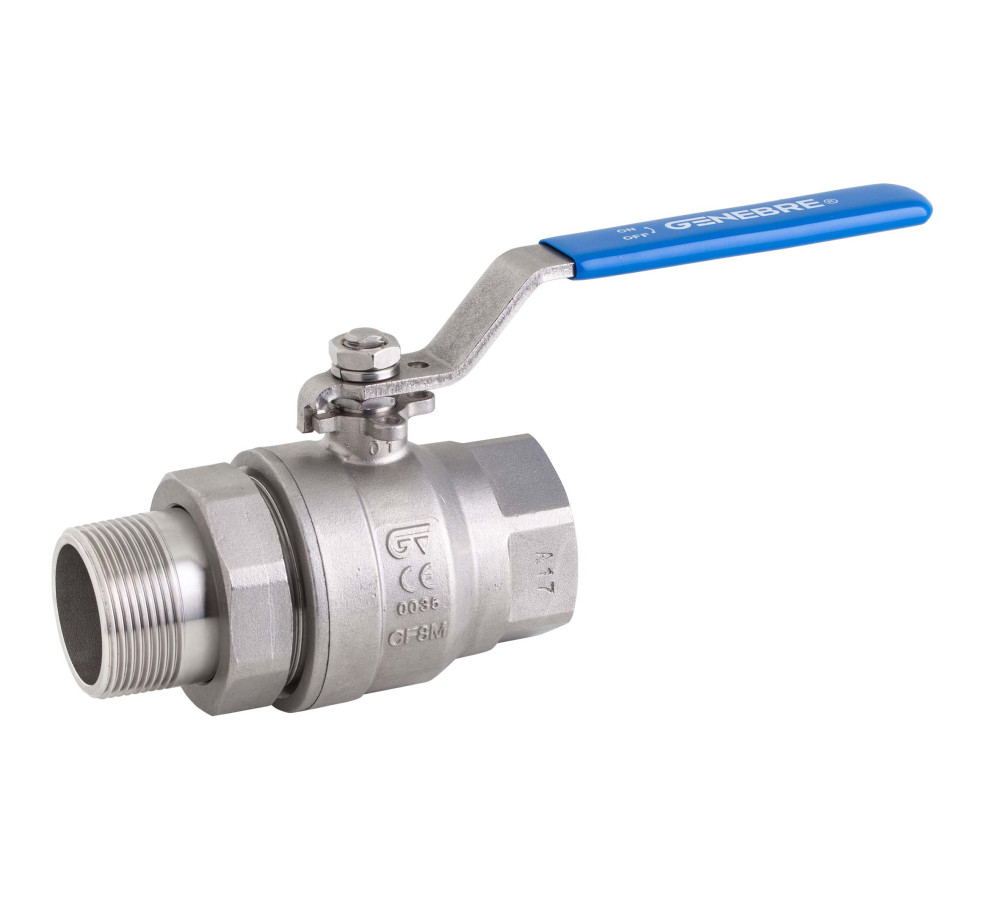

Full bore ball valve with 2 pieces connector

Const. stainless steel CF8M (316) investment casting. Gas
Threaded ends M-F ISO 7-1 (EN 10226-1). Seats: PTFE + 15% GF.
O'ring Stem: viton. PN 63. Temp: -25ºC + 180ºC.
Manually operated by handle with locking system.

Reference: 2048

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2048 06 BALL VALVE WITH 2-PCS CONNECTOR 1" 1 0.764 4/24
2048 07 BALL VALVE WITH 2-PCS CONNECTOR 1"1/4 1 1.325 2/12
2048 08 BALL VALVE WITH 2-PCS CONNECTOR 1"1/2 1 1.845 2/12
