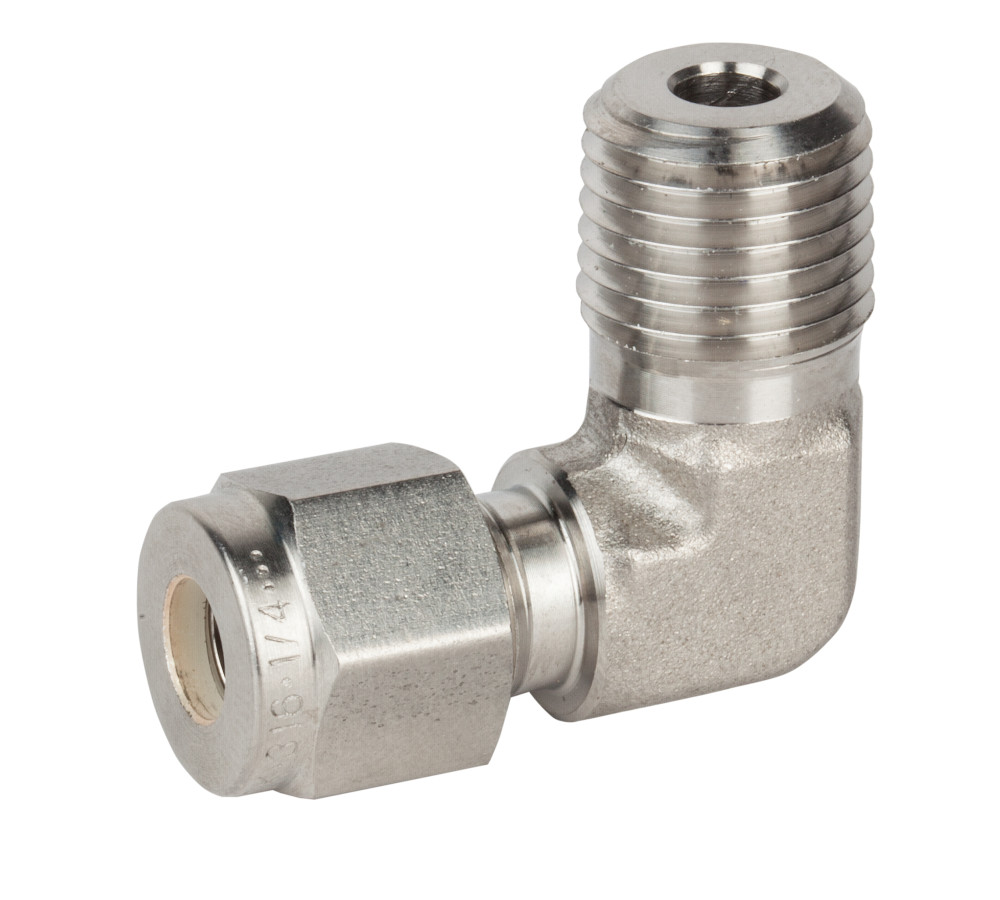

Elbow Thread M (BSPT) - Tube (mm)

Material AISI 316. Thread: ISO 7-1 R
Max. working pressure: 315 bar.

Reference: 8406D

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
8406D 02 006 ELBOW THREAD M (BSPT) - TUBE 1/4" x 6 (MM) 4 0.041 20/360
8406D 03 006 ELBOW THREAD M (BSPT) - TUBE 3/8" x 6 (MM) 2 0.073 16/288
8406D 03 008 ELBOW THREAD M (BSPT) - TUBE 3/8" x 8 (MM) 2 0.073 16/288
8406D 03 010 ELBOW THREAD M (BSPT) - TUBE 3/8" x 10 (MM) 2 0.083 16/288
8406D 04 006 ELBOW THREAD M (BSPT) - TUBE 1/2" x 6 (MM) 1 0.116 8/144
8406D 04 008 ELBOW THREAD M (BSPT) - TUBE 1/2" x 8 (MM) 1 0.117 8/144
8406D 04 010 ELBOW THREAD M (BSPT) - TUBE 1/2" x 10 (MM) 1 0.119 8/144
8406D 04 012 ELBOW THREAD M (BSPT) - TUBE 1/2" x 12 (MM) 1 0.129 8/144
