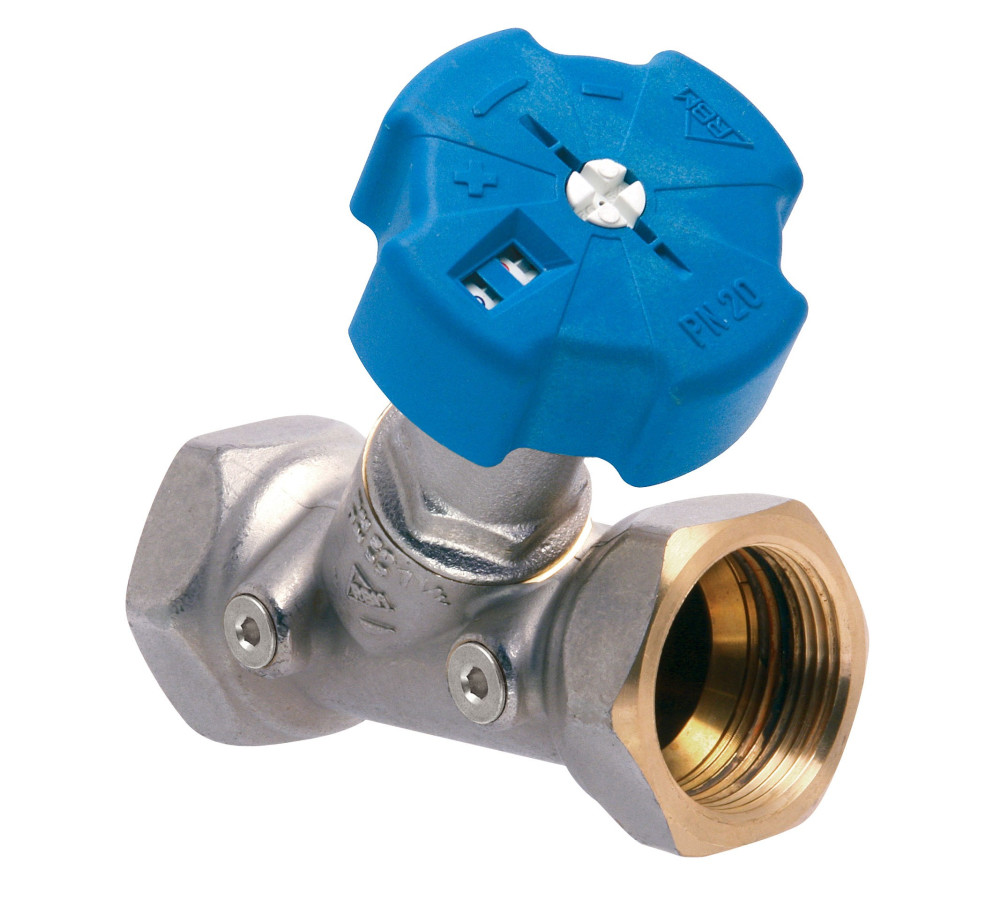

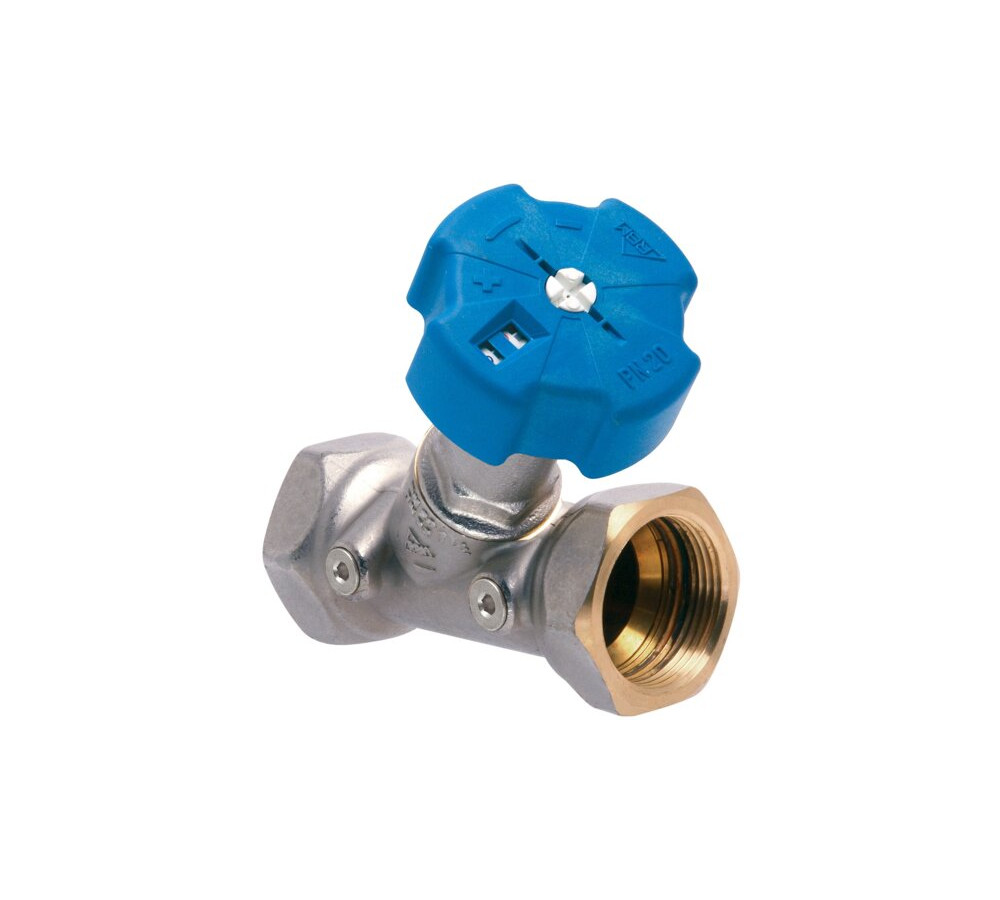

Static balancing valve

PN 20. Brass construction of body and inner components. Gas threaded ends (BSP) F-F, ISO 228/1. Pressure taps connection G 1/8” F. Working temperature from -30°C to 120°C.

Reference: 3073

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3073 04 STATIC BALANCE V.VAR ORIF 1/2" 1 0.415 1/12
3073 05 STATIC BALANCE V.VAR ORIF 3/4" 1 0.437 1/12
3073 06 STATIC BALANCE V.VAR ORIF 1" 1 0.675 1/9
3073 07 STAT. BALANC. V.VAR ORIF1 1/4" 1 0.93 1/7
3073 08 STAT.BALANCE V.VAR ORIF 1 1/2" 1 1.18 1/4
3073 09 STATIC BALANCE V.VAR ORIF 2" 1 1.55 1/8
