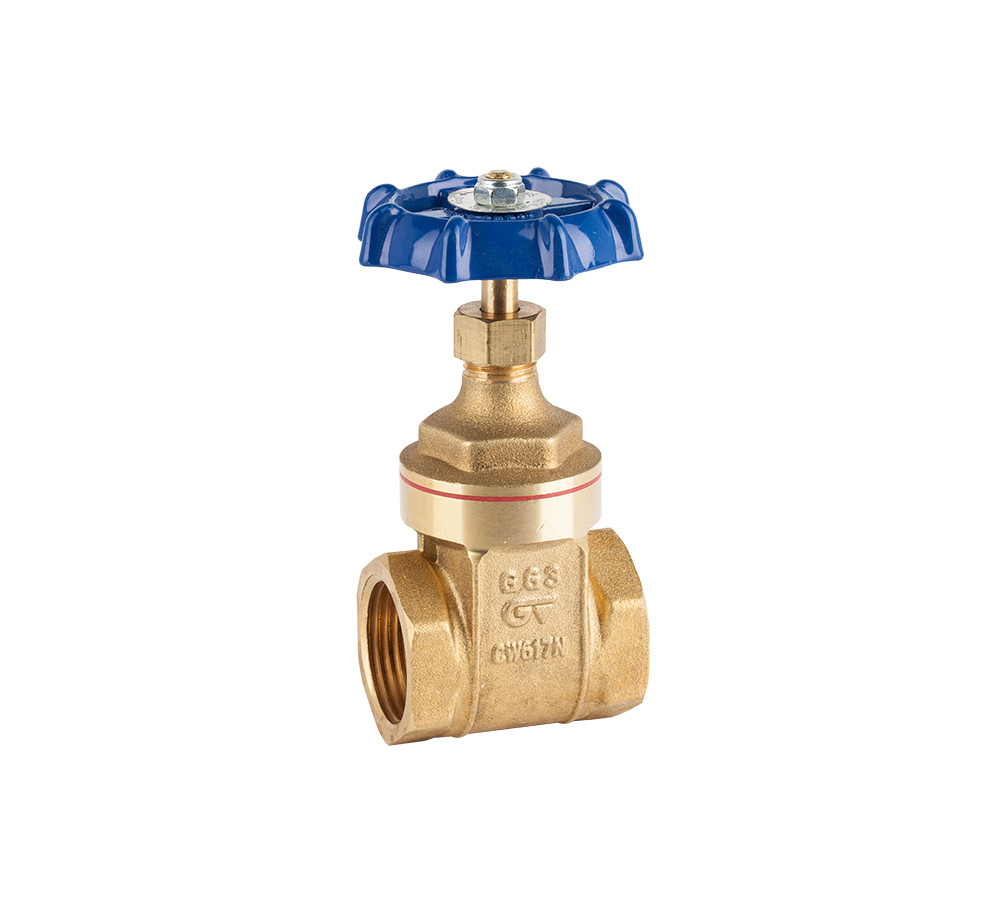

Brass gate valve

PN 20. Standard bore. Brass construction UNE-EN 12165. Max. temp. 180ºC. Gas threaded ends (BSP) F-F - ISO 228/1. Aluminium wheel.

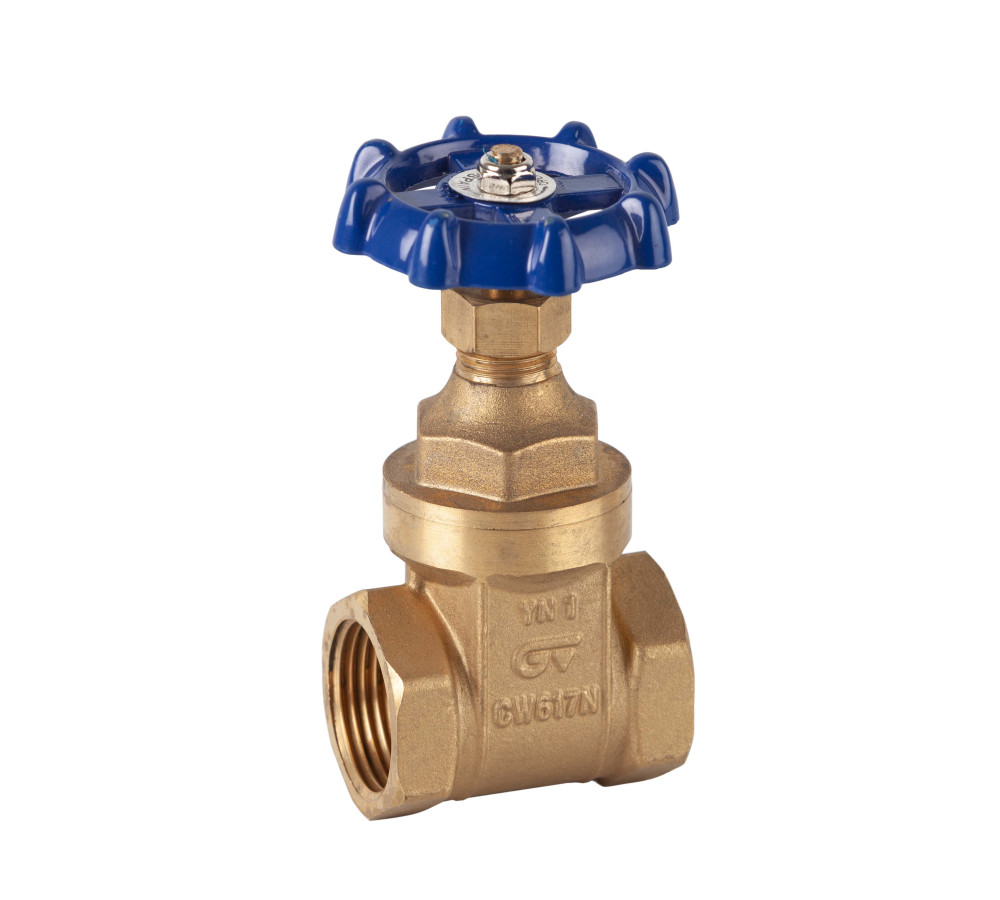

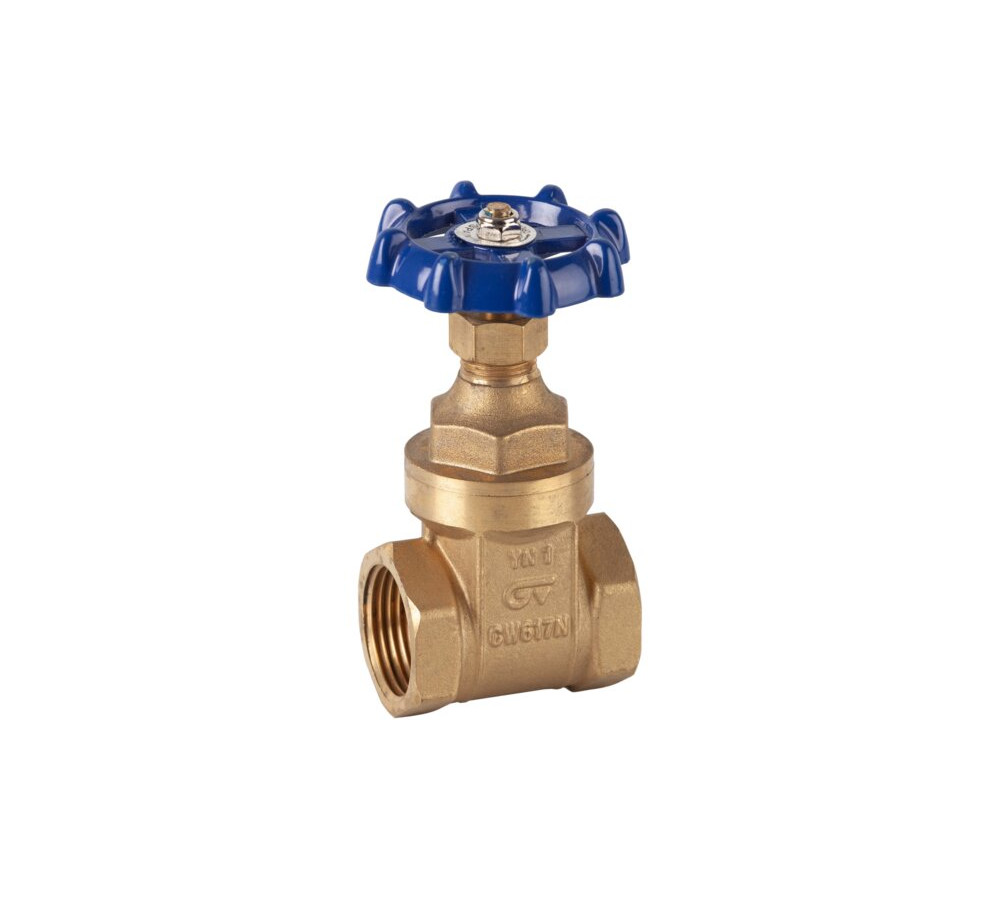

Also available NPT thread (3221N).

Reference: 3221

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3221 04 BRASS GATE VALVE 1/2" 10 0.243 10/100
3221 05 BRASS GATE VALVE 3/4" 8 0.355 8/48
3221 06 BRASS GATE VALVE 1" 5 0.503 5/50
3221 07 BRASS GATE VALVE 1 1/4" 4 0.723 4/24
3221 08 BRASS GATE VALVE 1 1/2" 2 0.943 2/24
3221 09 BRASS GATE VALVE 2" 2 1.367 2/16
3221 10 BRASS GATE VALVE PN20 2 1/2" 1 2.273 1/6
3221 11 BRASS GATE VALVE 3" 1 2.923 1/6
3221 12 BRASS GATE VALVE 4" 1 5.271 1/4
