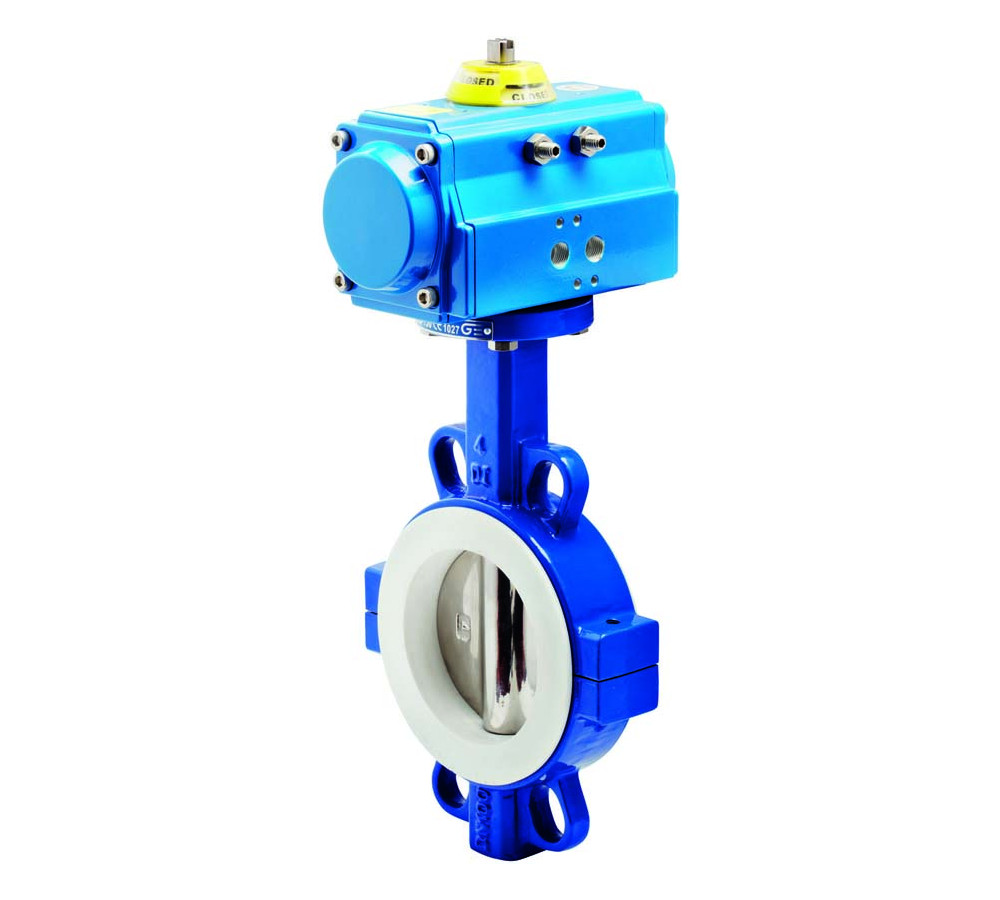

Butterfly valve wafer type

Butterfly valve wafer type.
Body, ductile iron GGG-40. Stem and disc: stainless steel 316.
Seat: PTFE with EPDM backup ring. Temp. -25ºC +180ºC.
Manually operated by handle until 5”, from 6” with gear operator. Face to face according to DIN 3202 K1. Working pressure: 10 bar.
With GNP actuator.

-13ºF + 356ºF

Reference: 5111

Valve Technical Sheet
GNP Actuator technical sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5111 09 144 V. 2101 2" WITH GNP-94/S5 1 7.62 1/1
5111 10 144 V. 2101 2"1/2 C/ACT. GNP-94/S5 1 7.88 1/1
5111 11 148 V. 2101 3" WITH GNP-135/S5 1 10.34 1/1
5111 12 156 V. 2101 4" C/ACT. GNP-198/S6 1 13.33 1/1
5111 13 164 V. 2101 5" C/ACT. GNP-513/S5 1 22.07 1/1
5111 14 168 V. 2101 6" WITH GNP-800/S5 1 30.64 1/1
5111 16 172 V. 2101 8" C/ACT. GNP-1280/S5 1 60.08 1/1
