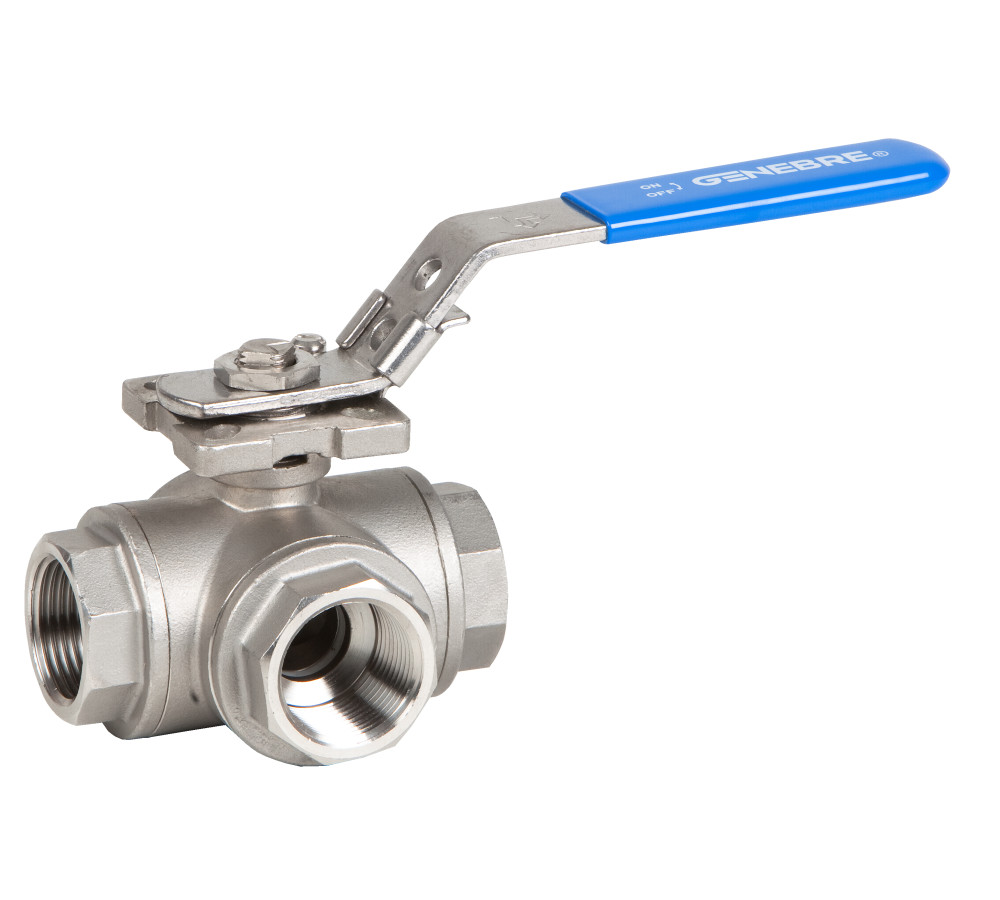

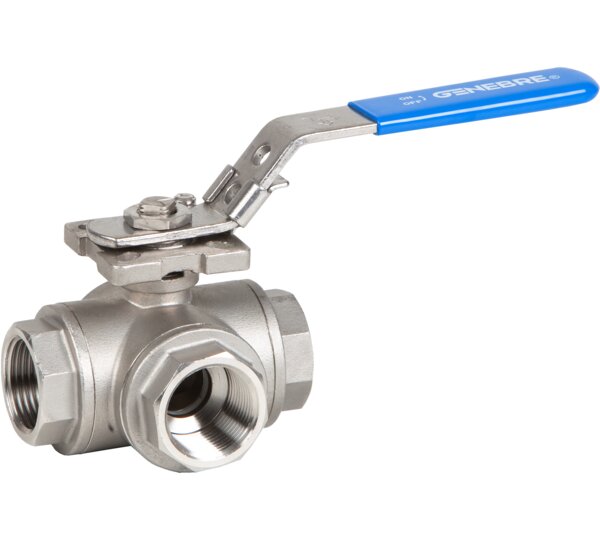

3 Ways ball valve reduced bore type “L”

Const.: AISI 316; Four seats PTFE + GF body and stem seats: PTFE o’ring stem: Viton. Gas threaded ends ISO 7-1 (EN 10226-1). PN 63. Temp. -25ºC +180ºC. Direct assembling S/ISO 5211. Manually operated by handle with locking system.

Reference: 2040

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2040 02 THREE WAYS BALL VALVE "L" 1/4" 1 0.704 6/36
2040 03 THREE WAYS BALL VALVE "L" 3/8" 1 0.68 6/36
2040 04 THREE WAYS BALL VALVE "L" 1/2" 1 0.635 6/36
2040 05 THREE WAYS BALL VALVE "L" 3/4" 1 0.98 3/18
2040 06 THREE WAYS BALL VALVE "L" 1" 1 1.474 2/12
2040 07 THREE WAYS BALL VALVE "L"1"1/4 1 3.022 1/8
2040 08 THREE WAYS BALL VALVE "L"1"1/2 1 3.768 1/6
2040 09 THREE WAYS BALL VALVE "L" 2" 1 6.466 1/3
2040 10 THREE WAYS BALL VALVE "L" 1 9.049 1/2
