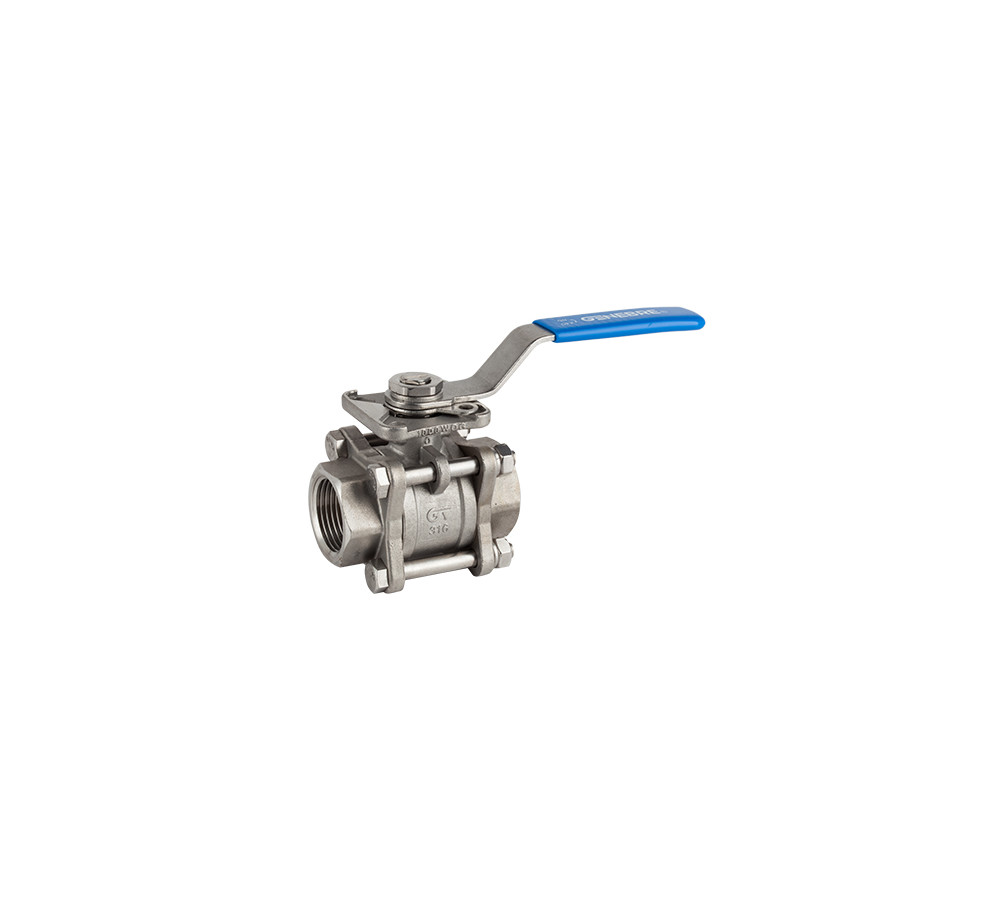

3 pcs full bore ball valve

Const.: stainless steel CF8M (316) investment casting gas thread ISO 7-1 (EN 10226-1). Seats and seats: PTFE +15% GF o’ring stem: viton PN 63. Temp. -25ºC +180ºC. Direct assembling ISO 5211 with locking system.

Reference: 2025

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2025 02 3PCS FULL BORE BALL V. 1/4" 1 0.388 8/64
2025 03 3PCS FULL BORE BALL V. 3/8" 1 0.373 8/64
2025 04 3PCS FULL BORE BALL V. 1/2" 1 0.424 6/54
2025 05 3PCS FULL BORE BALL V. 3/4" 1 0.826 3/27
2025 06 3PCS FULL BORE BALL V. 1" 1 1.028 2/20
2025 07 3PCS FULL BORE BALL V. 1 1/4" 1 1.871 1/8
2025 08 3PCS FULL BORE B. V. 1 1/2" 1 2.519 4/8
2025 09 3PCS FULL BORE B. V. 2" 1 3.571 2/6
2025 10 3PCS FULL BORE B. V. 2 1/2" 1 8.813 1/2
2025 11 3PCS FULL BORE BALL V. 3" 1 12.854 1/2
2025 12 3PCS FULL BORE BALL V. 4" 1 19.792 1/1
