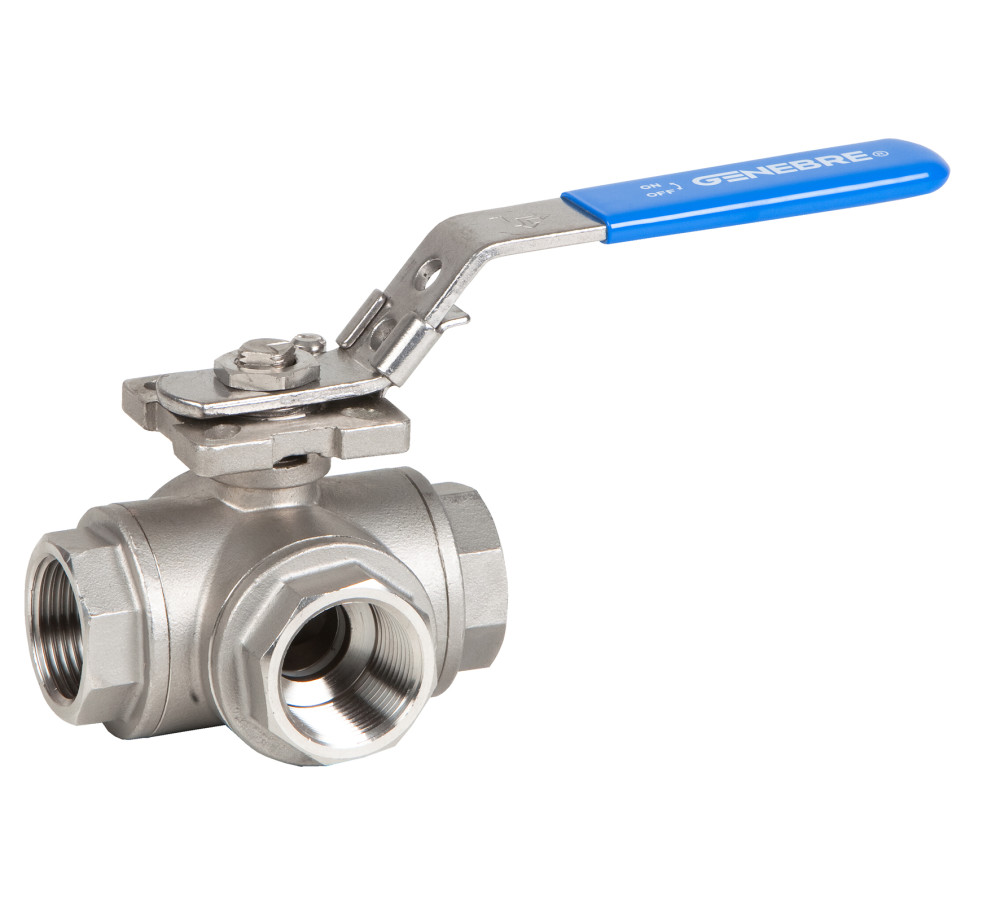

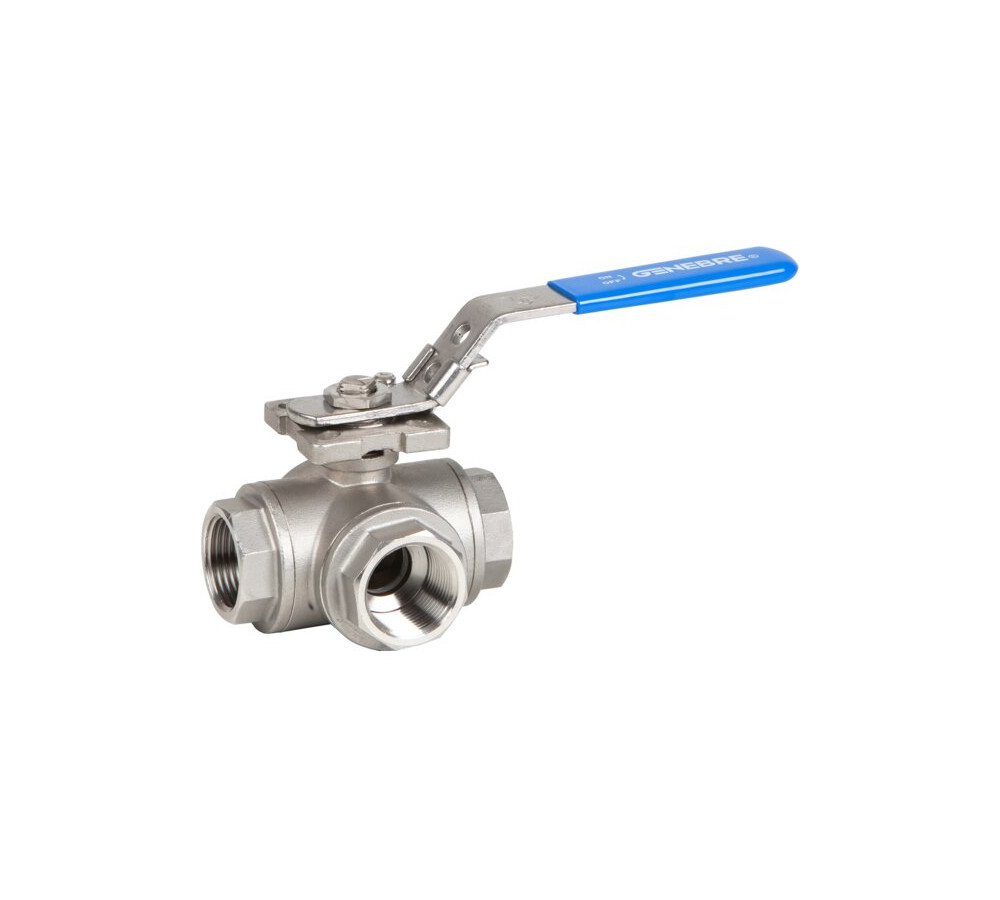

3 Ways ball valve reduced bore type “T” NPT thread

Const.: AISI 316; Four seats PTFE + GF body and stem seats: PTFE o’ring stem: Viton. NPT threaded ends. PN 63. Temp. -25ºC +180ºC. Direct assembling S/ISO 5211. Manually operated by handle with locking system.

Reference: 2041N

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2041N 02 3 WAYS BALL VALVE "T" BORE 1/4" NPT 1 0.7 6/36
2041N 03 THREE WAYS BALL VALVE "T" BORE 3/8" NPT 1 0.679 6/36
2041N 04 THREE WAYS BALL VALVE "T" BORE 1/2" NPT 1 0.626 6/36
2041N 05 THREE WAYS BALL VALVE "T" BORE 3/4" NPT 1 0.977 3/18
2041N 06 3 WAYS BALL VALVE "T" BORE 1" NPT 1 1.461 2/12
2041N 07 THREE WAYS BALL VALVE "T" BORE 1"1/4 NPT 1 2.985 1/12
2041N 08 THREE WAYS BALL VALVE "T" BORE 1"1/2 NPT 1 3.718 1/6
2041N 09 THREE WAYS BALL VALVE "T" BORE 2" NPT 1 6.4 1/3
2041N 10 THREE WAYS BALL VALVE "T" BORE 2"1/2 NPT 1 8.75 1/2
