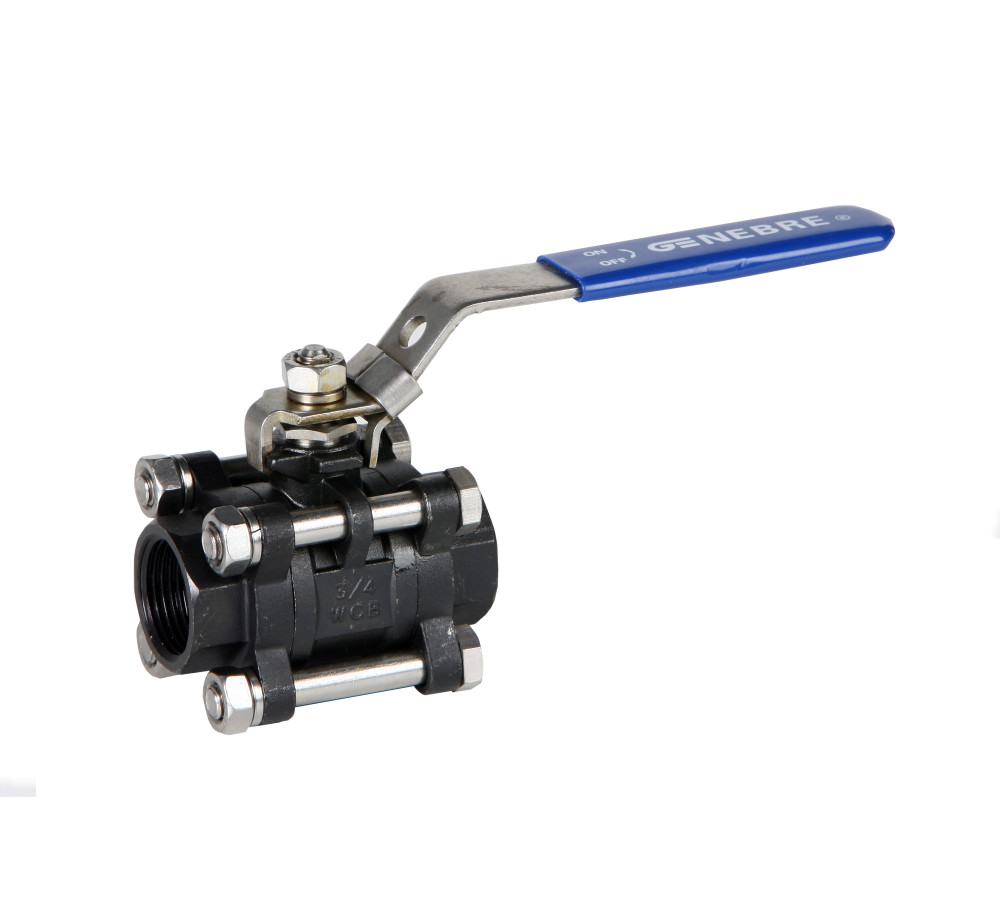

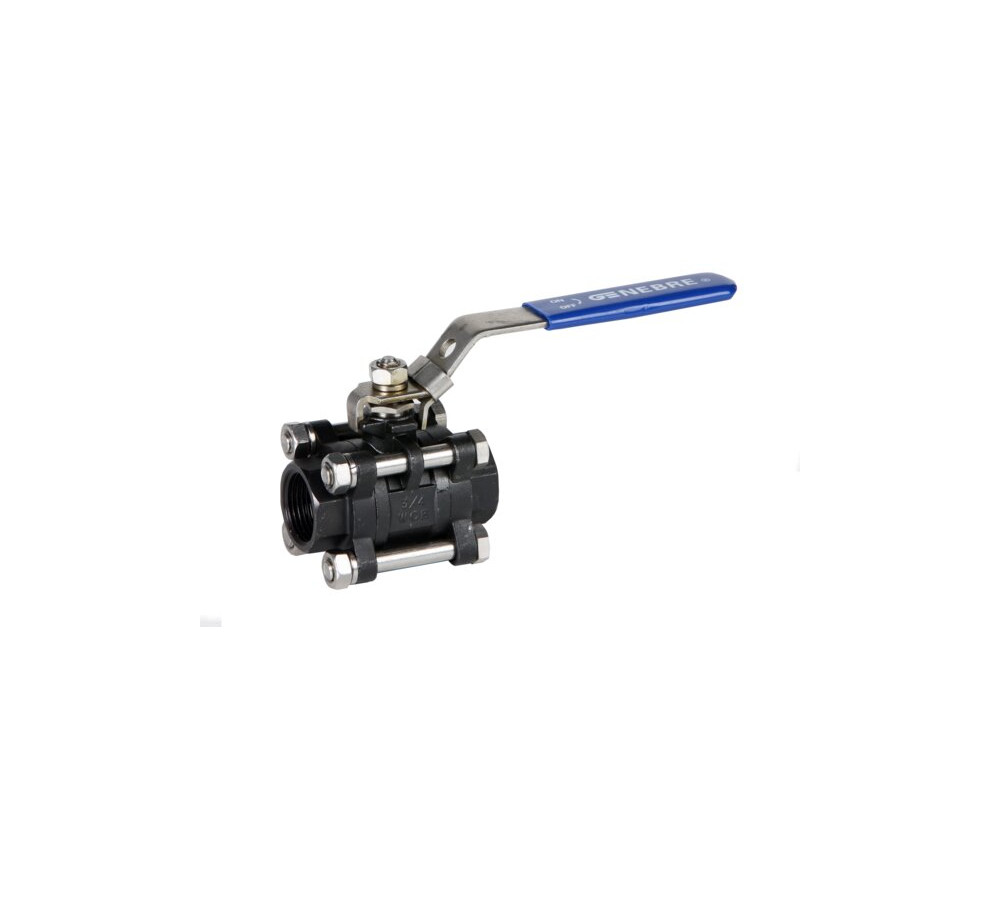

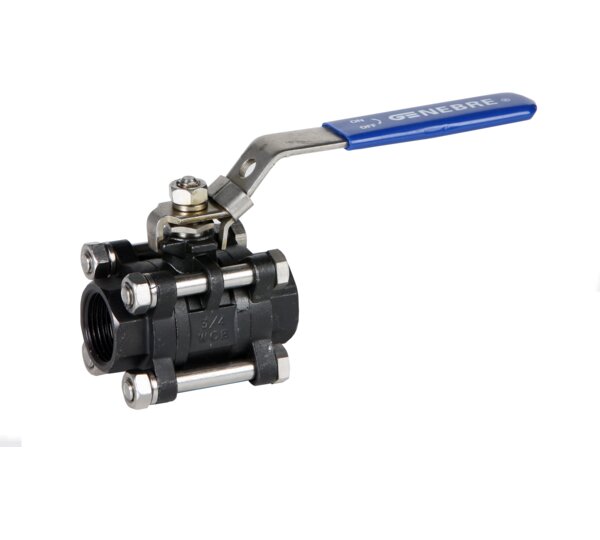

3 pcs full bore ball valve NPT thread

Const. carbon steel “WCB” (investment casting). Ball and stem: stainless steel 316. NPT threaded ends. Seats: PTFE + 15% GF. 1000 wog. Temp. -25ºC +180ºC. Manually operated by handle with locking system.

1000 WOG -13ºF + 356ºF

Reference: 2034N

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2034N 02 3 PCS FULL BORE B. V. NPT 1/4" 1 0.278 12/72
2034N 03 3PCS FULL BORE B.V. NPT 3/8" 1 0.267 12/50
2034N 04 3PCS FULL BORE B.V. NPT 1/2" 1 0.364 9/54
2034N 05 3PCS FULL BORE B.V. NPT 3/4" 1 0.616 6/36
2034N 06 3 PCS FULL BORE B.V. NPT 1" 1 0.826 4/24
2034N 07 3PCS FULL BORE B.V. NPT 1 1/4" 1 1.466 2/12
2034N 08 3PCS FULL BORE B.V. NPT 1 1/2" 1 1.78 4/12
2034N 09 3PCS FULL BORE B.V. NPT 2" 1 3.143 3/6
2034N 10 3PCS FULL BORE B.V. 2 1/2" 1 6.459 1/3
2034N 11 3PCS FULL BORE B.V. NPT 3" 1 9.297 1/2
2034N 12 3PCS FULL BORE B.V. NPT 4" 1 19.87 1/1
