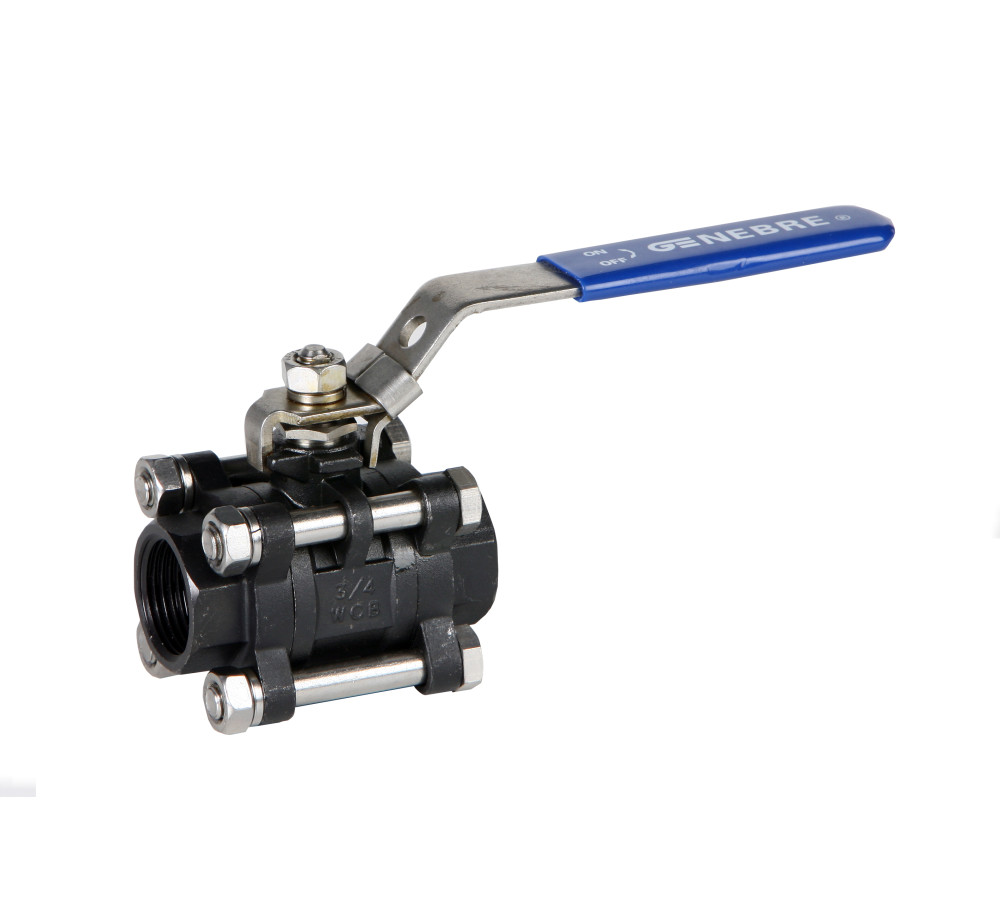

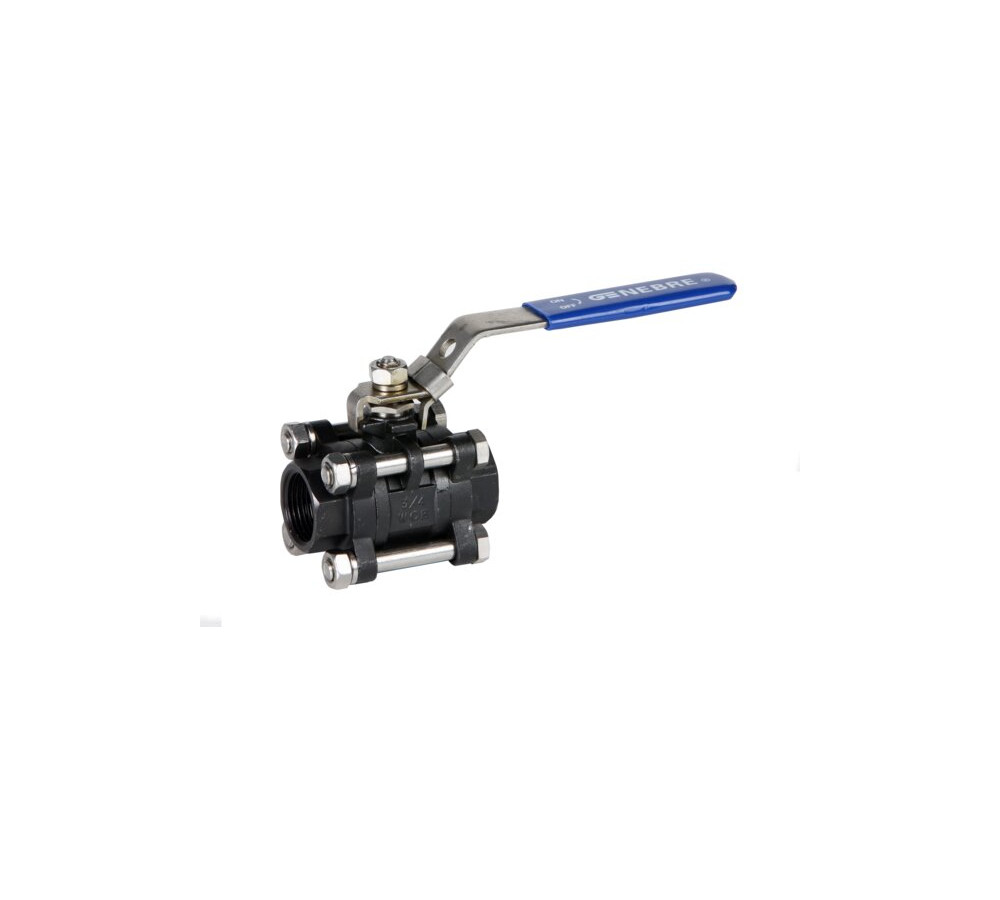

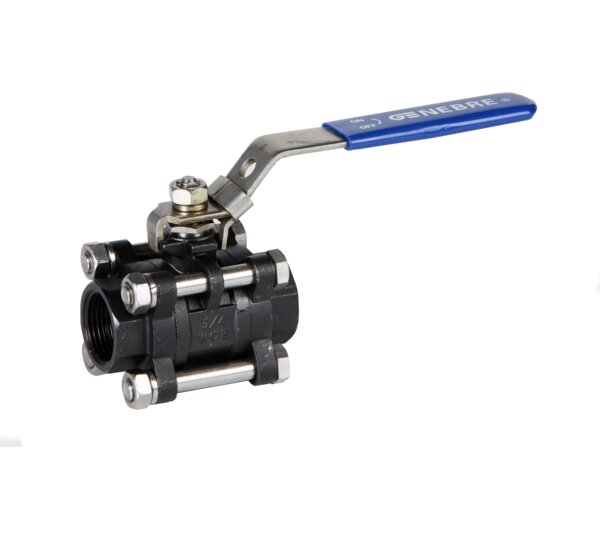

3 pcs full bore ball valve

Const. carbon steel “WCB” (investment casting). Ball and stem: stainless steel 316. Gas thread ISO 7-1 (EN 10226-1). Seats: PTFE + 15% GF. 1000 wog. Temp. -25ºC +180ºC. Manually operated by handle with locking system.

Reference: 2034

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2034 02 3 PCS FULL BORE BALL V. 1/4" 1 0.28 12/72
2034 03 3 PCS FULL BORE V. 3/8" 1 0.263 12/72
2034 04 3 PCS FULL BORE BALL V. 1/2" 1 0.356 9/54
2034 05 3PCS FULL BORE BALL V. 3/4" 1 0.608 6/36
2034 06 3PCS FULL BALL V. 1" 1 0.813 4/24
2034 07 3PCS FULL BORE BALL V. 1 1/4" 1 1.445 2/12
2034 08 3 PCS FULL BORE BALL V. 1 1/2" 1 1.752 4/8
2034 09 3 PCS FULL BORE BALL V. 2" 1 3.111 3/6
2034 10 3PCS FULL BORE BALL V. 2 1/2" 1 6.148 1/4
2034 11 3PCS FULL BALL V. 3" 1 9.16 1/2
2034 12 3PCS FULL BORE BALL V. 4" 1 19.651 1/1
