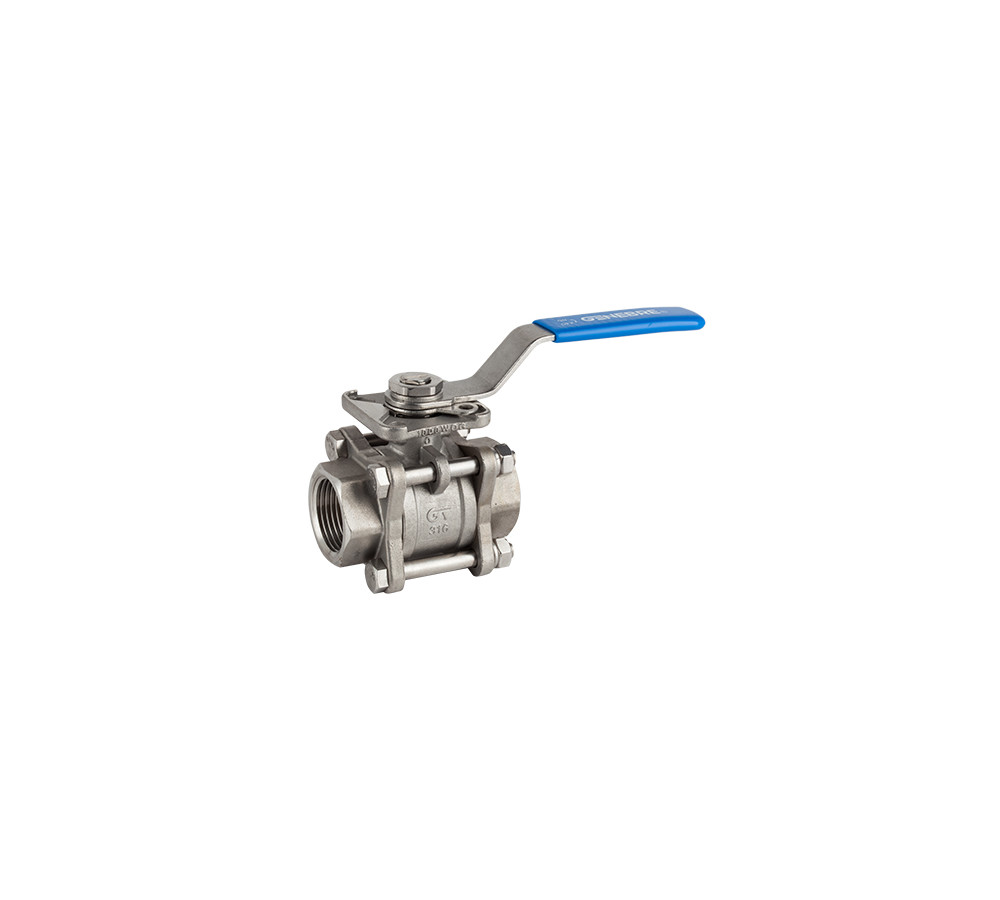

3 pcs full bore ball valve NPT thread

Const.: stainless steel CF8M (316) investment casting NPT thread. Seats and seats: PTFE +15% GF o’ring stem: viton PN-63. Temp. -25ºC +180ºC. Direct assembling ISO 5211 with locking system.


Reference: 2025N

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2025N 02 3PCS FULL BORE BALL V. 1/4"NPT 1 0.387 8/64
2025N 03 3 PCS FULL BORE B. V. NPT 3/8" 1 0.383 8/64
2025N 04 3 PCS FULL BORE B. V. 1/2" NPT 1 0.433 6/54
2025N 05 3 PCS FULL BORE B.V. 3/4" NPT 1 0.832 3/27
2025N 06 3 PCS FULL BORE B. V. 1" NPT 1 1.037 2/20
2025N 07 3 PCS FULL BORE B.V.NPT 1 1/4" 1 1.871 1/8
2025N 08 3 PCS FULL BORE B.V. NPT1 1/2" 1 2.526 4/8
2025N 09 3 PCS FULL BORE B. V. 2" NPT 1 3.585 2/6
2025N 10 3 PCS FULL BORE B.V.2 1/2" NPT 1 9.087 1/2
2025N 11 3 PCS FULL BORE BALL V. NPT 3" 1 13.004 1/1
2025N 12 3PCS FULL BORE BALL V. 4" NPT 1 20.101 1/1
