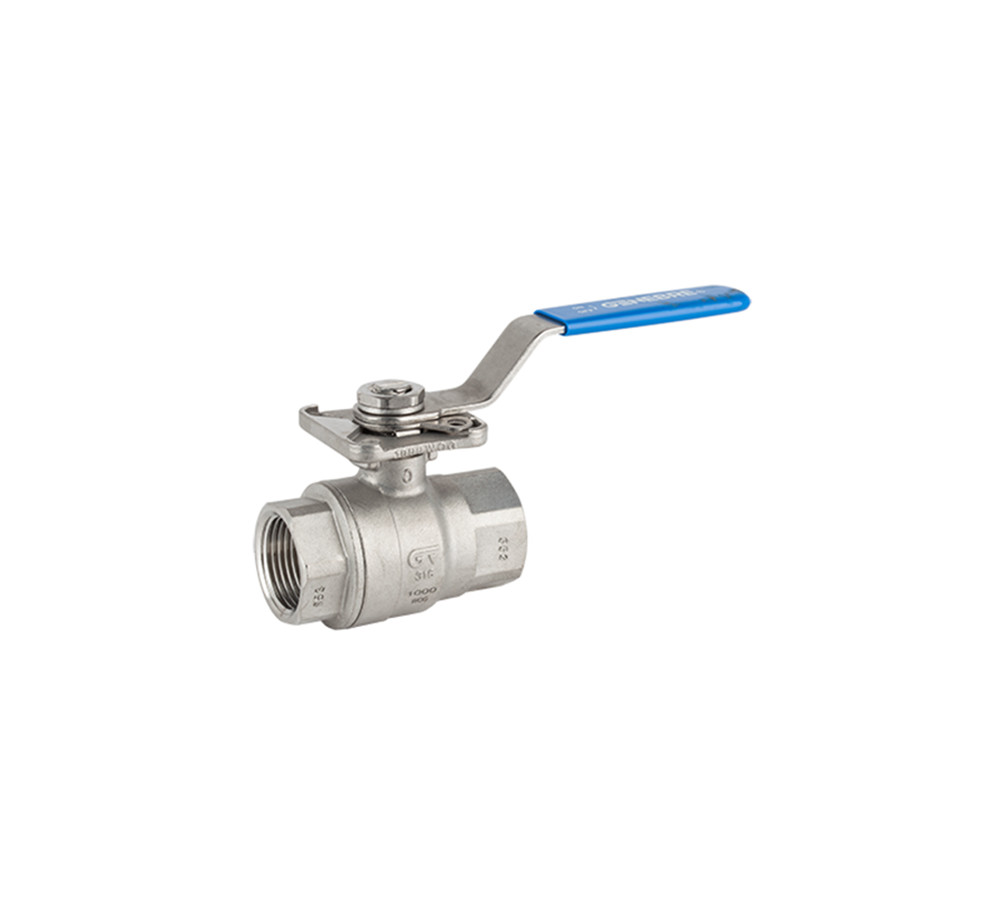

2 pcs full bore ball valve

Const. AISI 316 seats and seals PTFE + GF gas threaded ends ISO 7-1 (EN 10226-1). O’ring stem: viton. PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211with locking system.

Reference: 2015

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2015 02 2PCS FULL BORE BALL V. 1/4" 1 0.298 8/96
2015 03 2PCS FULL BORE BALL V. 3/8" 1 0.287 8/96
2015 04 2PCS FULL BORE BALL V. 1/2" 1 0.328 6/72
2015 05 2PCS FULL BORE BALL V. 3/4" 1 0.571 3/36
2015 06 2PCS FULL BORE BALL V. 1" 1 0.726 2/24
2015 07 2PCS FULL BORE BALL V. 1 1/4" 1 1.356 8/16
2015 08 2PCS FULL BORE BALL V. 1 1/2" 1 1.897 6/12
2015 09 2PCS FULL BORE BALL V. 2" 1 2.849 3/6
