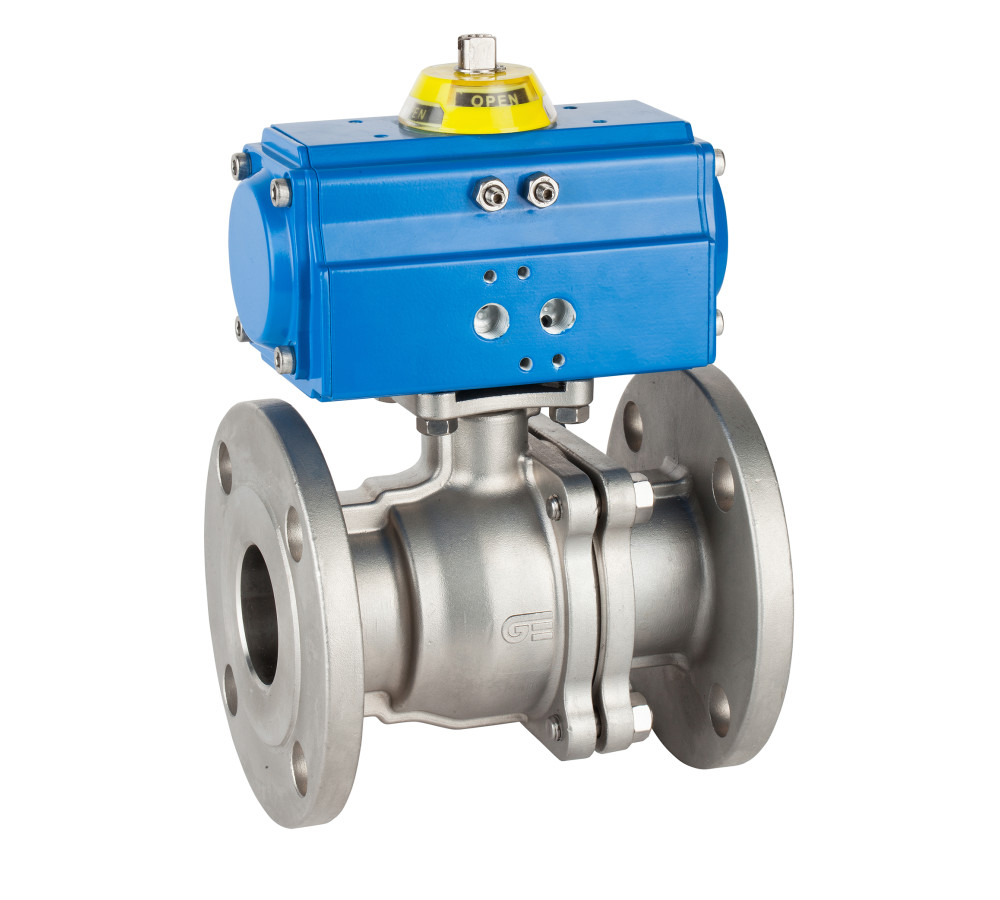

2 pieces ball valve with flanges / GNP Actuator

2 pieces ball valve with flanges. Body: stainless steel CF8M (316). Seats: PTFE + 15% GF. Max. pressure: 19 kg/cm2. Temp.: -30ºC +180ºC. Manually operated by handle. With GNP Actuator

Reference: 5528A

GNP Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5528A 04 122 V. 2528A 1/2" WITH GNP-14 1 2.25 1/1
5528A 05 122 V. 2528A 3/4" WITH GNP-14 1 2.9 1/1
5528A 06 122 V. 2528A 1" WITH GNP-14 1 3.65 1/1
5528A 07 128 V. 2528A 1"1/4 WITH GNP-44 1 6.27 1/1
5528A 08 128 V. 2528A 1"1/2 WITH GNP-44 1 7.9 1/1
5528A 09 128 V. 2528A 2" WITH GNP-44 1 9.86 1/1
5528A 10 142 V. 2528A 2"1/2 WITH GNP-94 1 16.7 1/1
5528A 11 142 V. 2528A 3" WITH GNP-94 1 21.15 1/1
5528A 12 150 V. 2528A 4" WITH GNP-198 1 35.68 1/1
5528A 14 162 V. 2528A 6" WITH GNP-513 1 66.2 1/1
5528A 16 166 V. 2528A 8" WITH GNP-800 1 131.1 1/1
