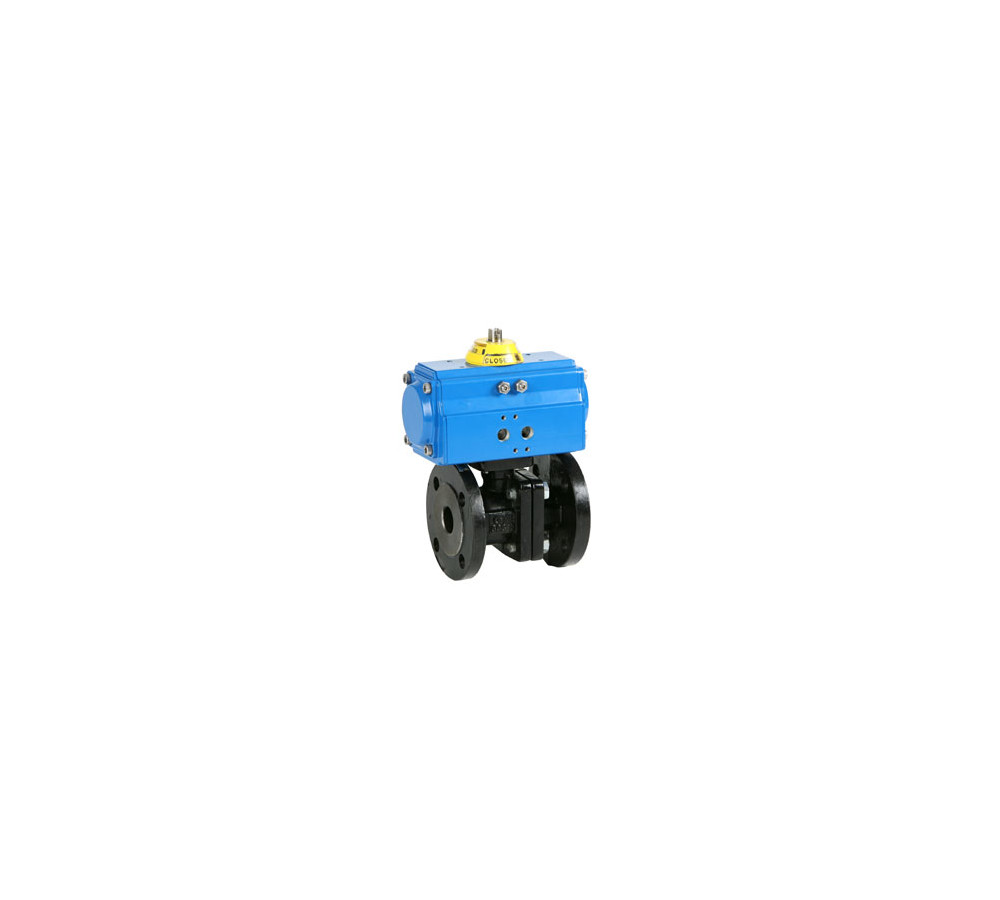

2 pieces full bore ball valve

2 pieces full bore ball valve.
Body: ductil iron GGG-40. Ball and stem: AISI 304.
Seats: PTFE + 15% GF. Stem o’ring: viton.
Max. pressure: 16 kg/cm2. Temp. -30ºC +180ºC.
Manually operated by handle with locking system.
L: S/DIN 3202 F-4.
With GNP actuator.

Reference: 5525

Valve Technical Sheet
GNP Actuator technical sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5525 04 130 V. 2525 1/2" WITH GNP-44 1 4.3 1/1
5525 05 132 V. 2525 3/4" WITH GNP-44/S4 1 5 1/1
5525 06 140 V. 2525 1" WITH GNP-60/S5 1 6.7 1/1
5525 07 140 V. 2525 1"1/4 WITH GNP-60/S5 1 8.74 1/1
5525 08 144 V. 2525 1"1/2 GNP-94/S5 1 10.4 1/1
5525 09 148 V. 2525 2" GNP-135/S5 1 14.7 1/1
5525 11 160 V. 2525 3" GNP-300/S5 1 27.1 1/1
5525 12 164 V. 2525 4" GNP-513/S5 1 36.5 1/1
5525 13 172 V. 2525 5" GNP-1280/S5 1 91.6 1/1
5525 14 172 V. 2525 6" GNP-1280/S5 1 108.6 1/1
5525 16 178 V. 2525 8" GNP-2300/S5 1 161.2 1/1
