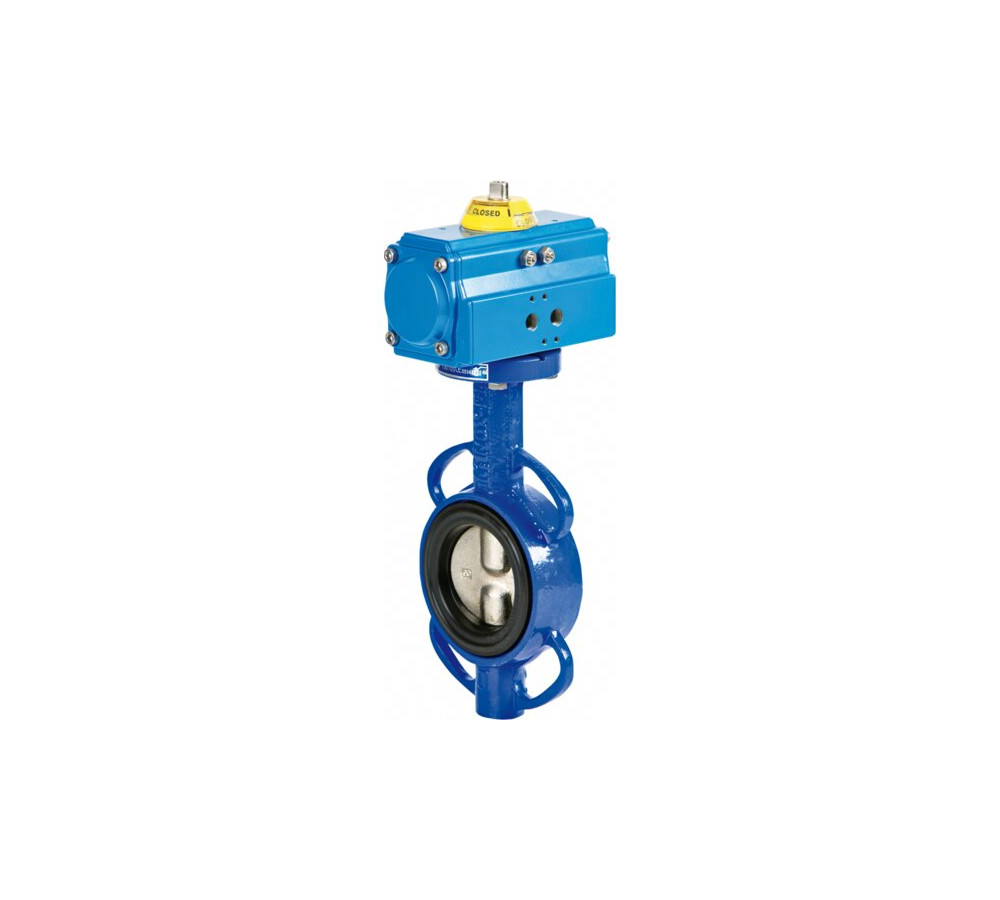

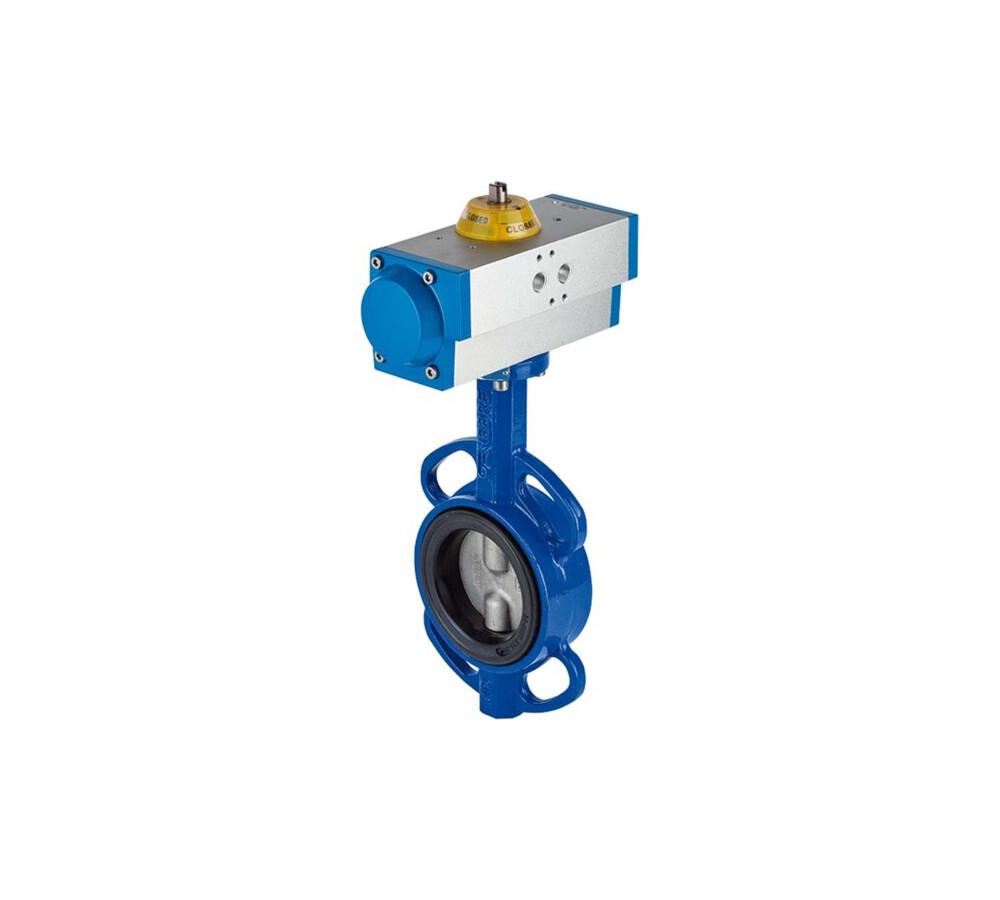

Butterfly valve wafer type

Butterfly valve wafer type. Body: cast iron + epoxy. Disk: stainless steel AISI 316.
Elastomer: EPDM. O’ring stem: NBR. Max. temp. 120ºC.
Flanges mounted actuators ISO 5211.
Handle up to 10” with gear operator from 12”. With Gen-Air actuator.

Reference: 5119

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5119 09 48 V. 2109 2" WITH GN-15 1 4.4 1/1
5119 10 48 V. 2109 2"1/2 WITH GN-15 1 5.1 1/1
5119 11 53 V. 2109 3" WITH GN-17 1 6.29 1/1
5119 12 64 V. 2109 4" WITH GN-20 1 8.4 1/1
5119 13 65 V. 2109 5" WITH GN-25 1 10.84 1/1
5119 14 65 V. 2109 6" WITH GN-25 1 11.64 1/1
5119 16 67 V. 2109 8" WITH GN-35 1 23.48 1/1
5119 18 68 V. 2109 10" WITH GN-40 1 31.23 1/1
5119 20 69 V. 2109 12" WITH GN-45 1 45.4 1/1
5119 22 180 V. 2109 14" WITH GNP-2500/S5 1 143.35 1/1
5119 24 180 V. 2109 16" WITH GNP-2500/S5 1 163.82 1/1
5119 28 100 V. 2109 20" WITH GN-70 1 219 1/1
