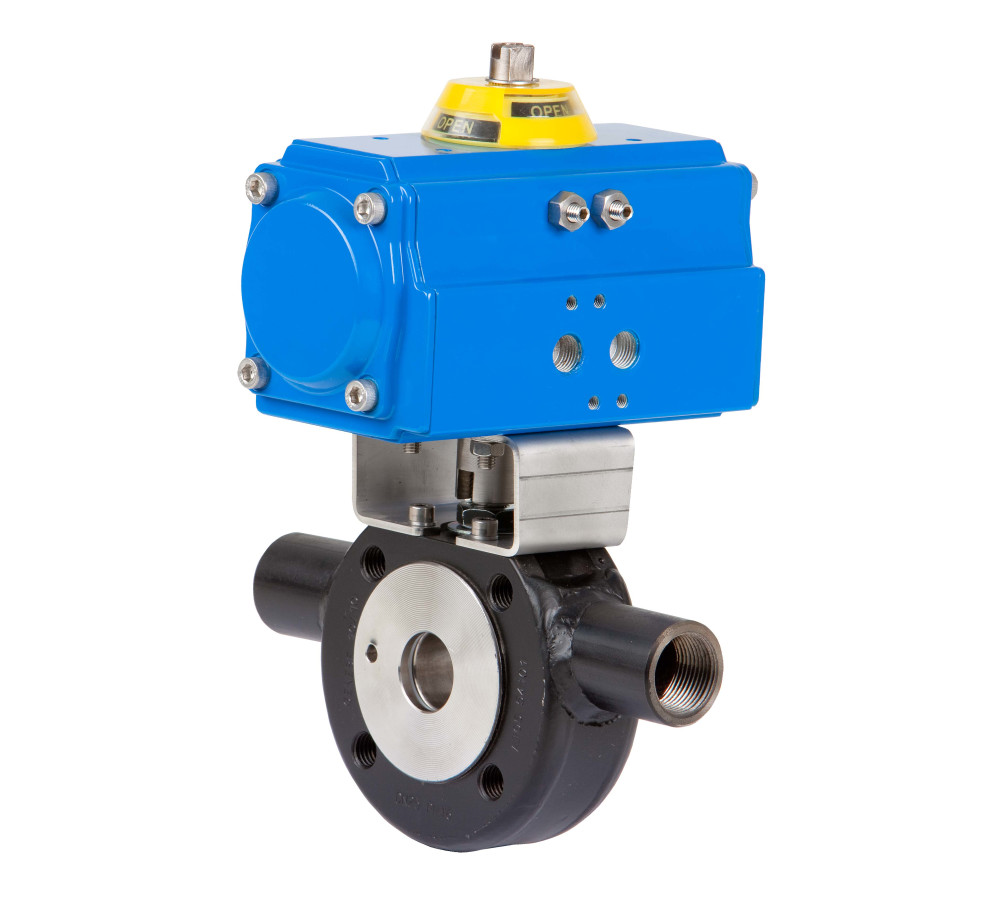

1 piece full bore ball valve with heating chamber. Mounting between flanges PN-16 wafer type

1 piece full bore ball valve with heating chamber. Mounting between flanges PN-16 wafer type.
Body: forged carbon steel A-105. Ball stem and cover: stainless steel AISI 304. Seats and seals: PTFE Temp. -20ºC +180ºC. Manually operated by handle. With GNP actuator

Reference: 5115

GNP Actuator technical sheet
Valve Technical Sheet
GNP Actuators folder
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5115 06 140 V. 2115 1" WITH GNP-60/S5 1 5.6 1/1
5115 07 144 V. 2115 1"1/4 WITH GNP-94/S5 1 6.17 1/1
5115 08 144 V. 2115 1"1/2 WITH GNP-94/S5 1 10.1 1/1
5115 09 152 V. 2115 2" WITH GNP-198/S4 1 14.7 1/1
5115 10 160 V. 2115 2"1/2 WITH GNP-300/S5 1 25.4 1/1
5115 11 164 V. 2115 3" WITH GNP-513/S5 1 34.8 1/1
5115 12 172 V. 2115 4" WITH GNP-1280/S5 1 76.5 1/1
