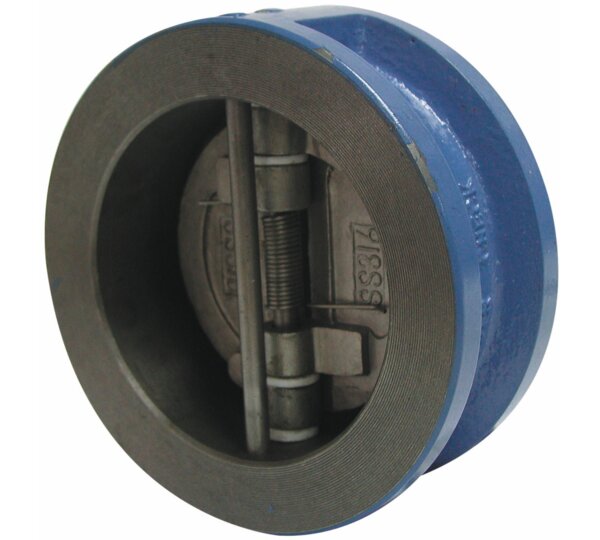

Wafer type. Double disk check valve PN 16

Body: cast iron GG 25. Disks stainless steel316. Stem and spring: AISI 316. Bearings: PTFE. Mounting between flanges PN 10/16 - ANSI 150 lbs. Seat: nitrile vulcanised in the slot.

Reference: 2401

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2401 09 DOUBLE DISK CHECK V. DN-50 1 1.434 1/1
2401 10 DOUBLE DISK CHECK V. DN-65 1 1.891 1/10
2401 11 DOUBLE DISK CHECK V. DN-80 1 2.497 1/9
2401 12 DOUBLE DISK CHECK V. DN-100 1 3.931 1/1
2401 13 DOUBLE DISK CHECK V. DN-125 1 6.077 1/1
2401 14 DOUBLE DISK CHECK V. DN-150 1 7.678 1/1
2401 16 DOUBLE DISK CHECK V. DN-200 1 15.099 1/1
2401 18 DOUBLE DISK CHECK V. DN-250 1 22.81 1/1
2401 20 DOUBLE DISK CHECK V. DN-300 1 40.05 1/1
