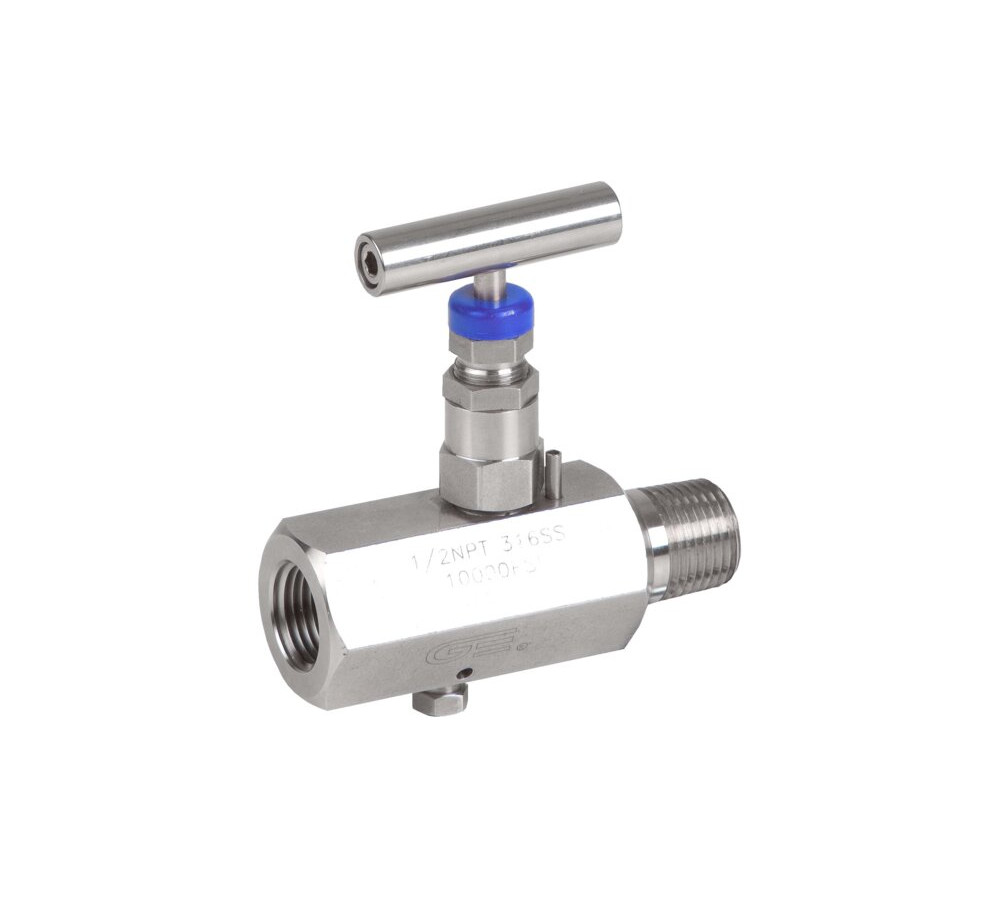

Needle valve – 6000 lbs with vent port

Construction: Stainless steel A182 F316 / Needle stailess steel A182 F316 + Heat treatment. Thread ISO 228-1. Stem packing ptfe. Max. working pressure 410 bar. Working temperature -54ºC to 250ºC.

Reference: 2226

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2226 02 NEED.V. BSP M-F W/VENT PORT1/4 1 0.538 12/36
2226 04 NEED.V. BSP M-F W/VENT PORT1/2 1 0.566 12/36
