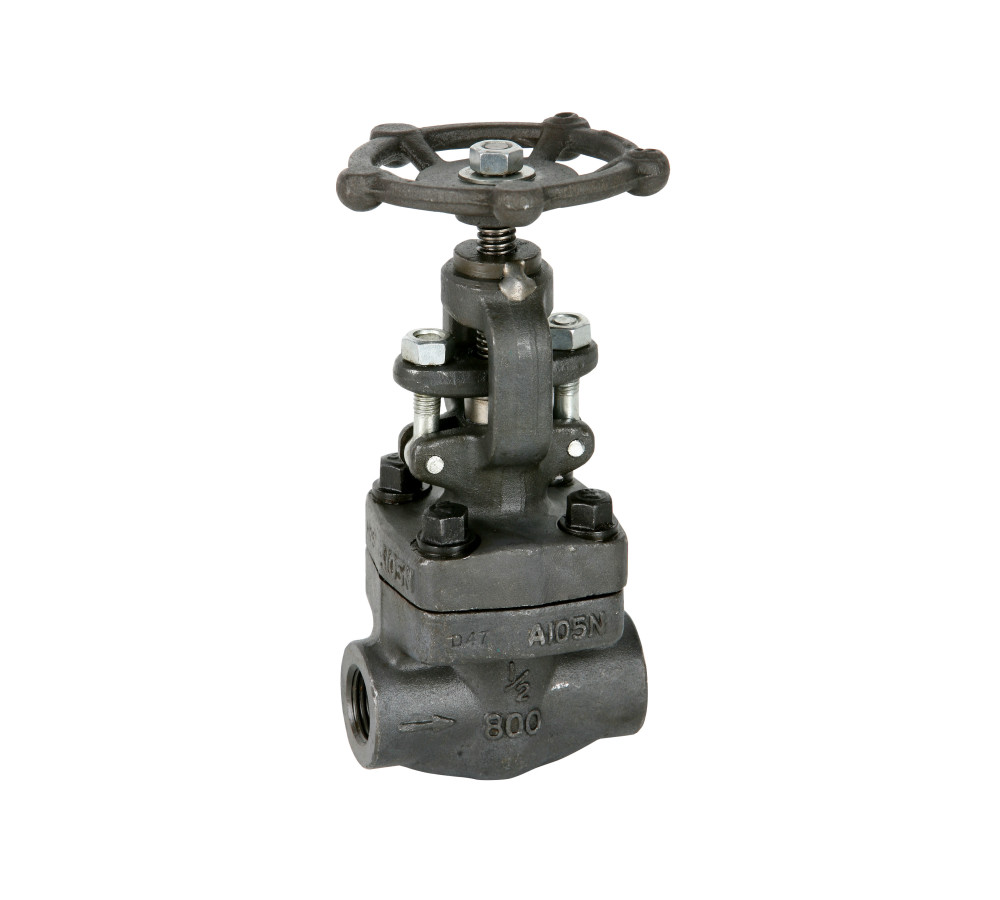

Globe valve class 800 NPT thread ends

Body and bonnet made of forged steel ASTM A105N.
Seat material: stainless steel stellited. Disc: ASTM A182
F6a (trim #8/XU). Bolted bonnet. NPT thread ends.

Max. working pressure: 140bar/ 2000 Psi
Max. working temperature: 420ºC / 788ºF

Reference: 2233N

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2233N 04 GLOBE VALVE CLASS 800 NPT 1/2" 1 2.21 1/1
2233N 05 GLOBE VALVE CLASS 800 NPT 3/4" 1 2.42 1/1
2233N 06 GLOBE VALVE CLASS 800 NPT 1" 1 3.928 1/1
2233N 07 GLOBE V. CLASS 800 NPT 1 1/4" 1 5.252 1/1
2233N 08 GLOBE VALVE C. 800 NPT 1 1/2" 1 7.332 1/1
2233N 09 GLOBE VALVE CLASS 800 NPT 2" 1 11.913 1/1
