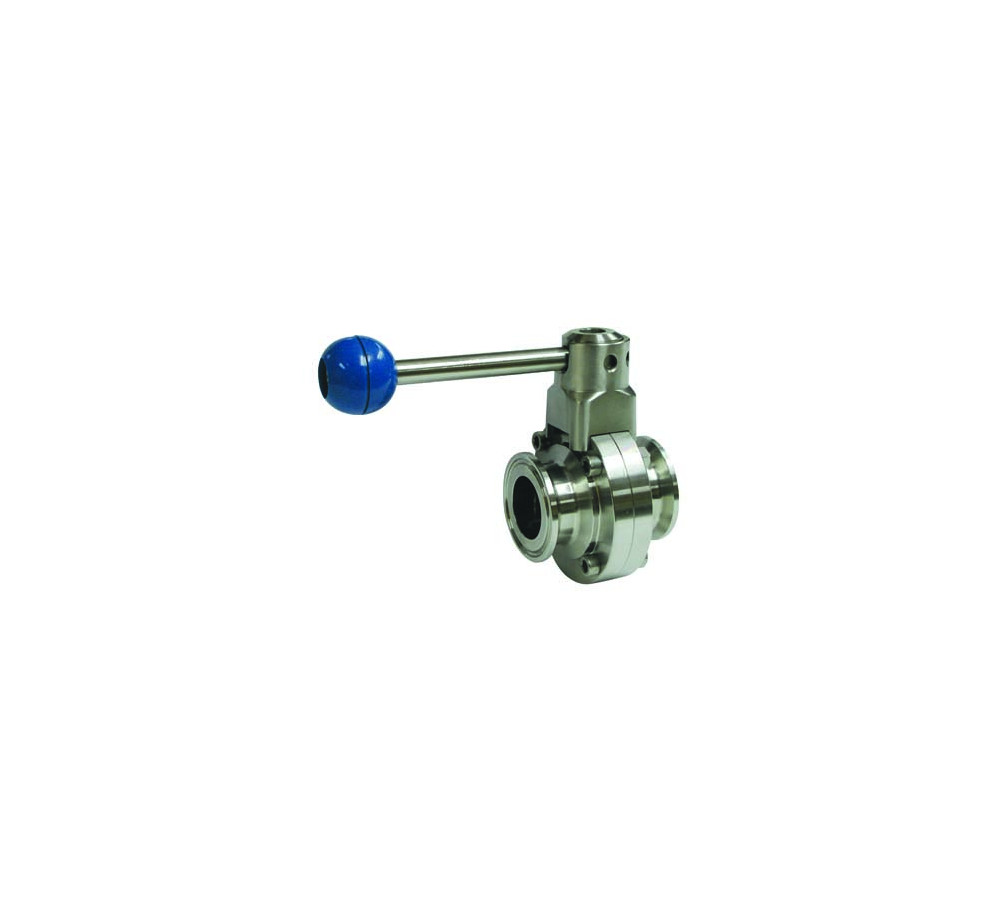

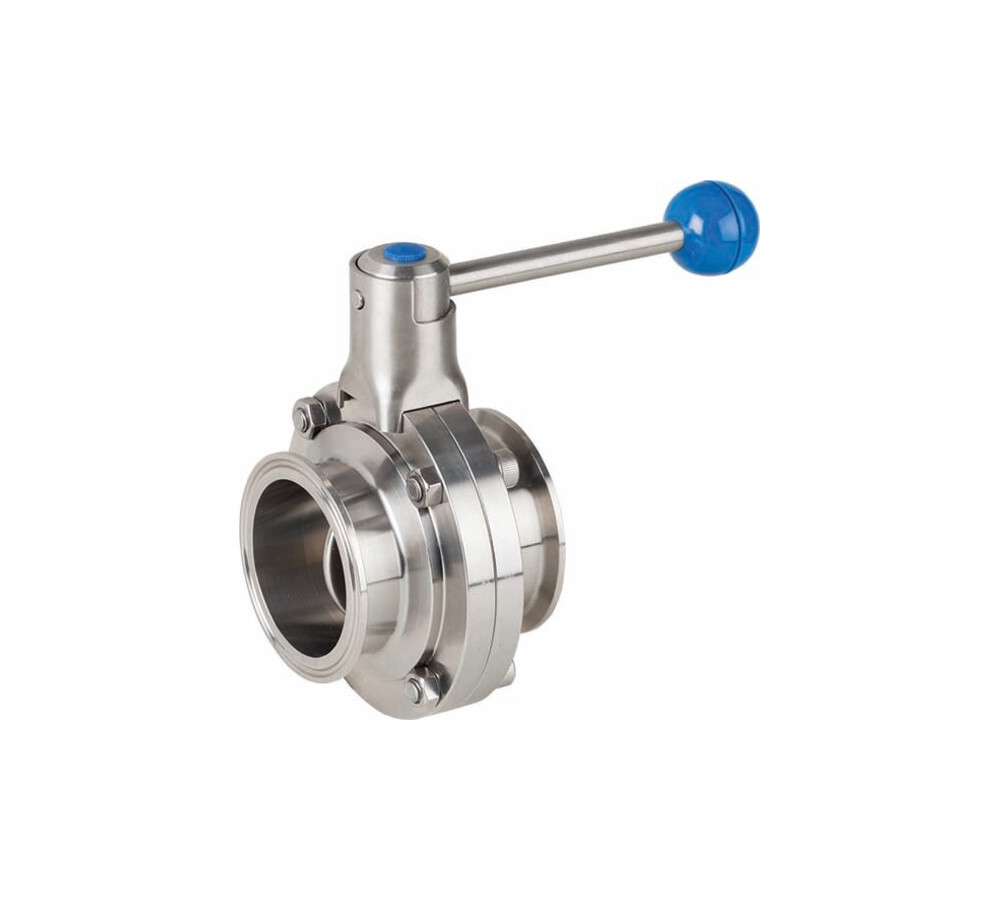

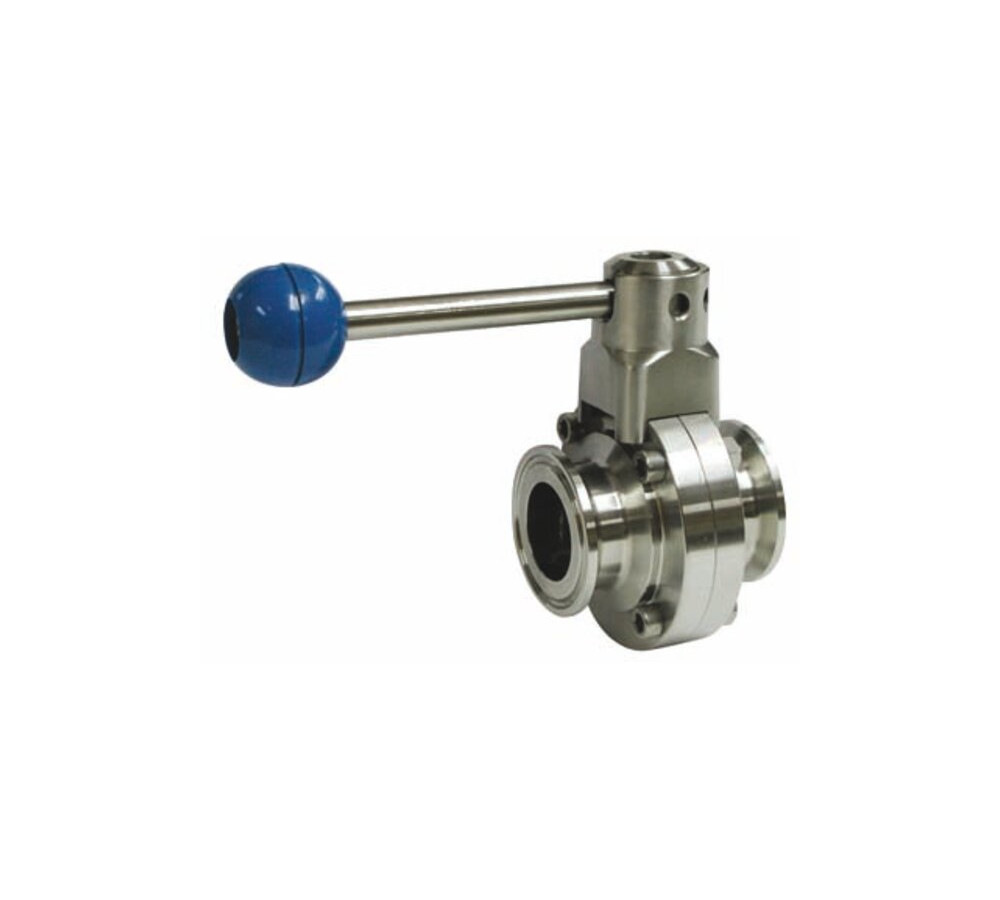

Butterfly valve clamp ends

Stainless steel body AISI 316L. EPDM elastomer (other material please consult us). Clamp ends in inches. Sanitary polish. Max. working pressure: 10 bar. Max. temp.: 120ºC. Manually operated.

Reference: 2940

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2940 06 BUTTERFLY VALVE CLAMP ENDS 1 1.294 2/16
2940 08 BUTTERFLY VALVE CLAMP ENDS 1 1.27 2/16
2940 09 BUTTERFLY VALVE CLAMP ENDS 1 1.806 2/12
2940 10 BUTTERFLY VALVE CLAMP ENDS 1 2.218 2/8
2940 11 BUTTERFLY VALVE CLAMP ENDS 1 2.611 2/6
2940 12 BUTTERFLY VALVE CLAMP ENDS 4" 1 3.484 2/4
