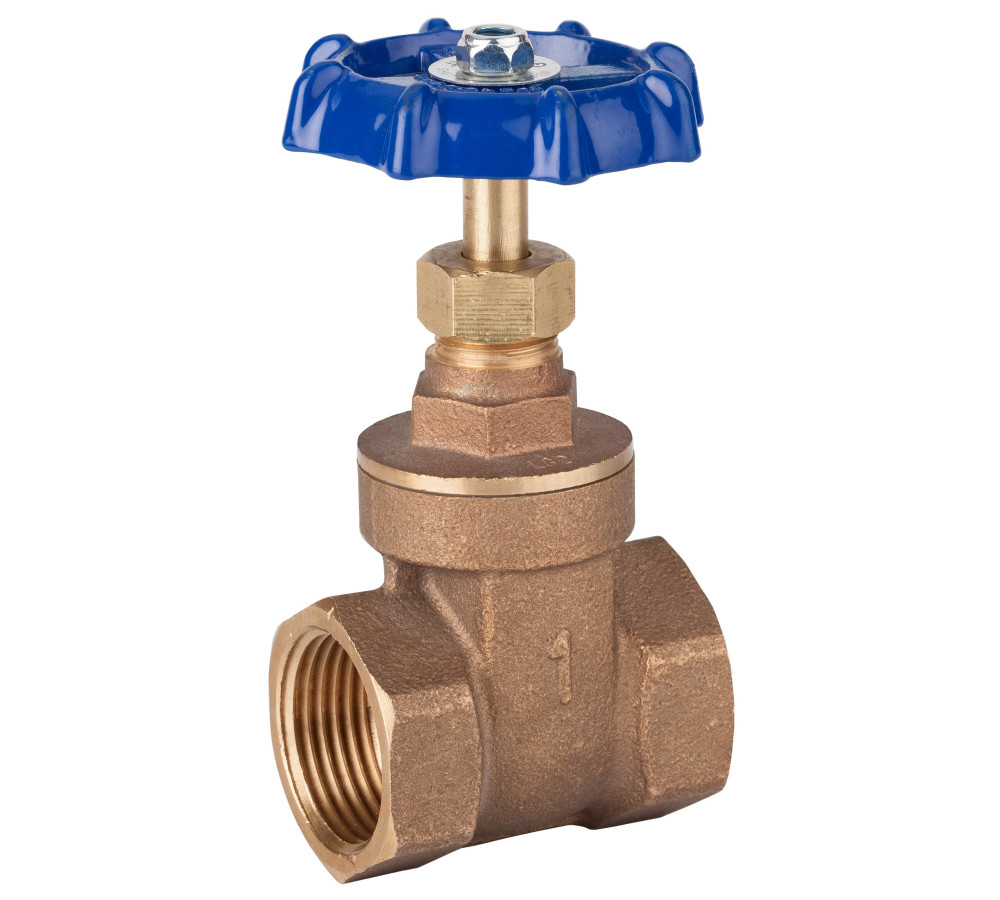

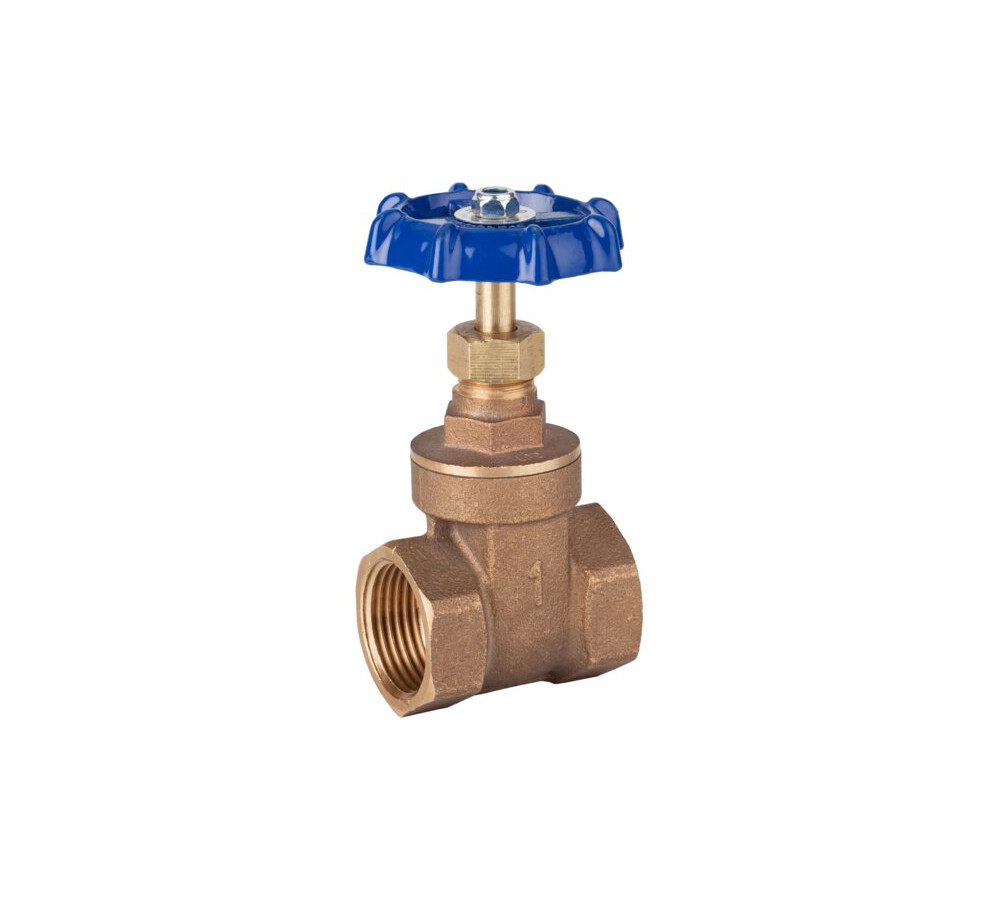

Bronze gate valve

PN 20. Standard bore. Bronze construction UNE-EN 1982. brass UNE-EN 12165. Gas threaded ends (BSP) F-F-ISO 228/1. Maximum working temperarue 180ºC. Aluminium wheel.

Reference: 3229

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3229 04 BRONZE GATE VALVE PN-20 1/2" 14 0.24 14/84
3229 05 BRONZE GATE VALVE PN-20 3/4" 10 0.327 10/60
3229 06 BRONZE GATE VALVE PN-20 1" 6 0.486 6/36
3229 07 BRONZE GATE VALVE PN-20 1"1/4 4 0.74 4/36
3229 08 BRONZE GATE VALVE PN-20 1"1/2 3 1.008 3/18
3229 09 BRONZE GATE VALVE PN-20 2" 2 1.568 2/12
3229 10 BRONZE GATE VALVE 2"1/2 1 3.013 1/6
