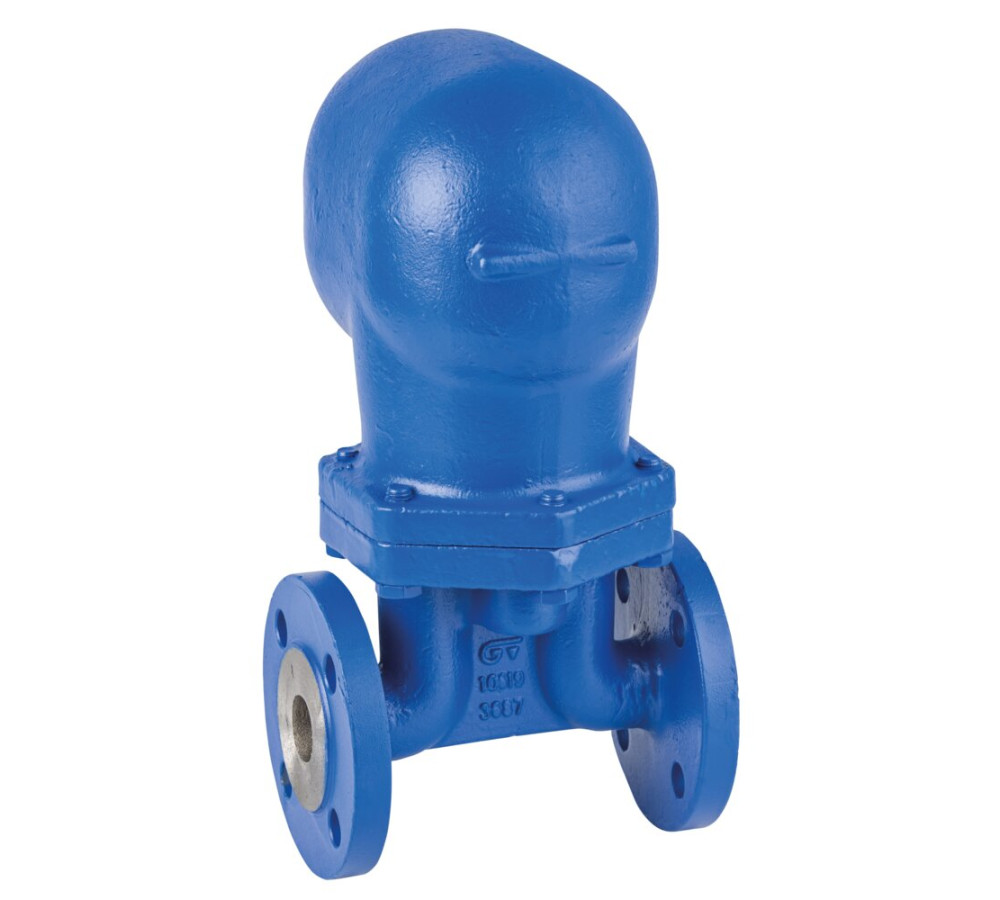

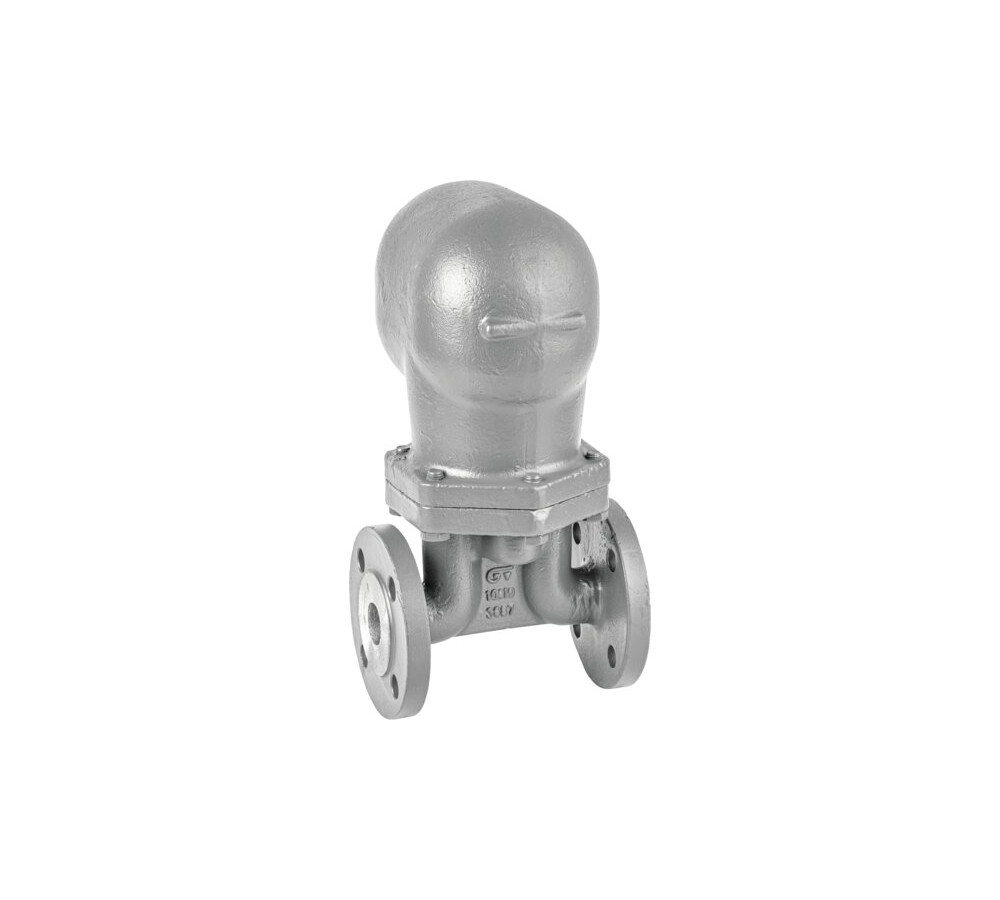

Ball float steam trap (high capacity discharge)

Flanged ends according to EN 1092-1 PN16. Construction: Carbon steel 1.0619 (WCB). Internal parts made of stainless steel. Internal air vent assembly. Horizontal installation. DN25: Single seat, DN40/50: Double seat. Maximum working pressure PN16. Maximun differential pressure: 4,5 bar (045) or 10 bar (100). Maximun working temperature 250ºC.

Reference: 2287

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2287 06 045 BALL FLOAT STEAM TRAP PN16 DN 25 Dp 4.5 SINGLE SEAT 1 9.823 1/1
2287 06 100 BALL FLOAT STEAM TRAP PN16 DN 25 Dp 10 SINGLE SEAT 1 9.949 1/1
2287 08 045 BALL FLOAT STEAM TRAP PN16 DN 40 Dp 4.5 DOUBLE SEAT 1 27.033 1/1
2287 08 100 BALL FLOAT STEAM TRAP PN16 DN 40 Dp 10 DOUBLE SEAT 1 26.937 1/1
2287 09 045 BALL FLOAT STEAM TRAP PN16 DN 50 Dp 4.5 DOUBLE SEAT 1 28.1 1/1
2287 09 100 BALL FLOAT STEAM TRAP PN16 DN 50 Dp 10 DOUBLE SEAT 1 27.808 1/1
