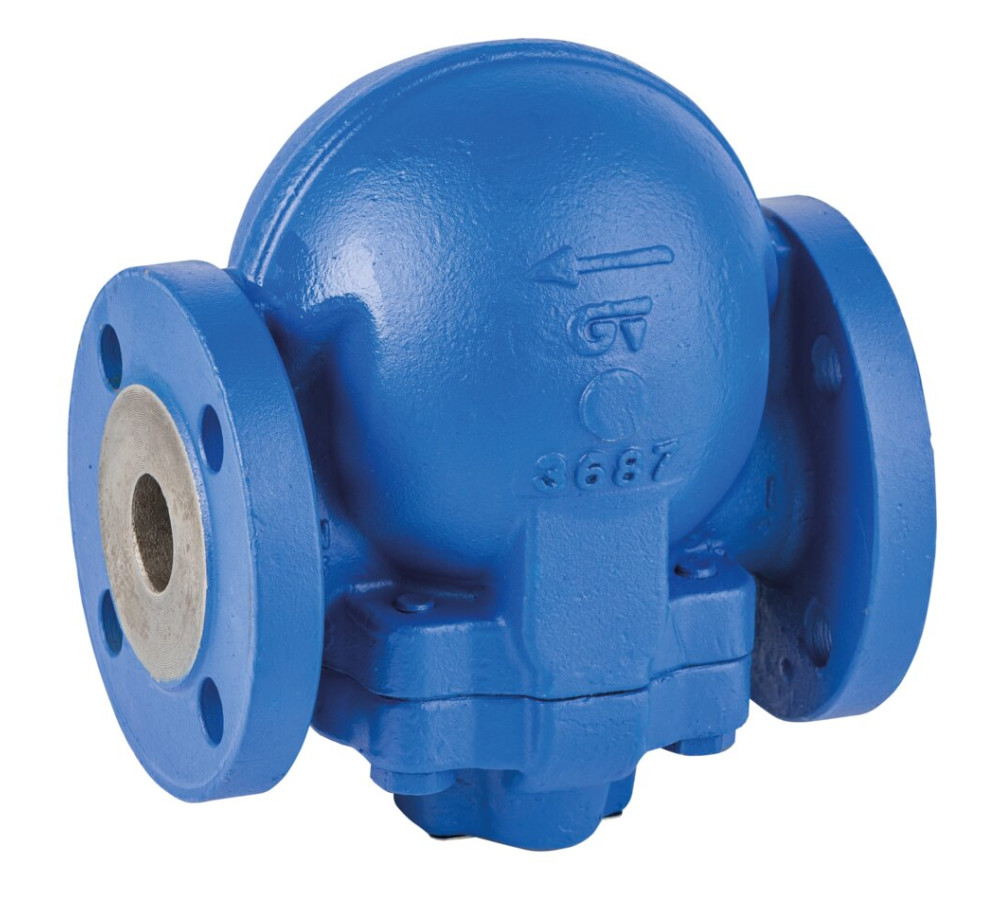

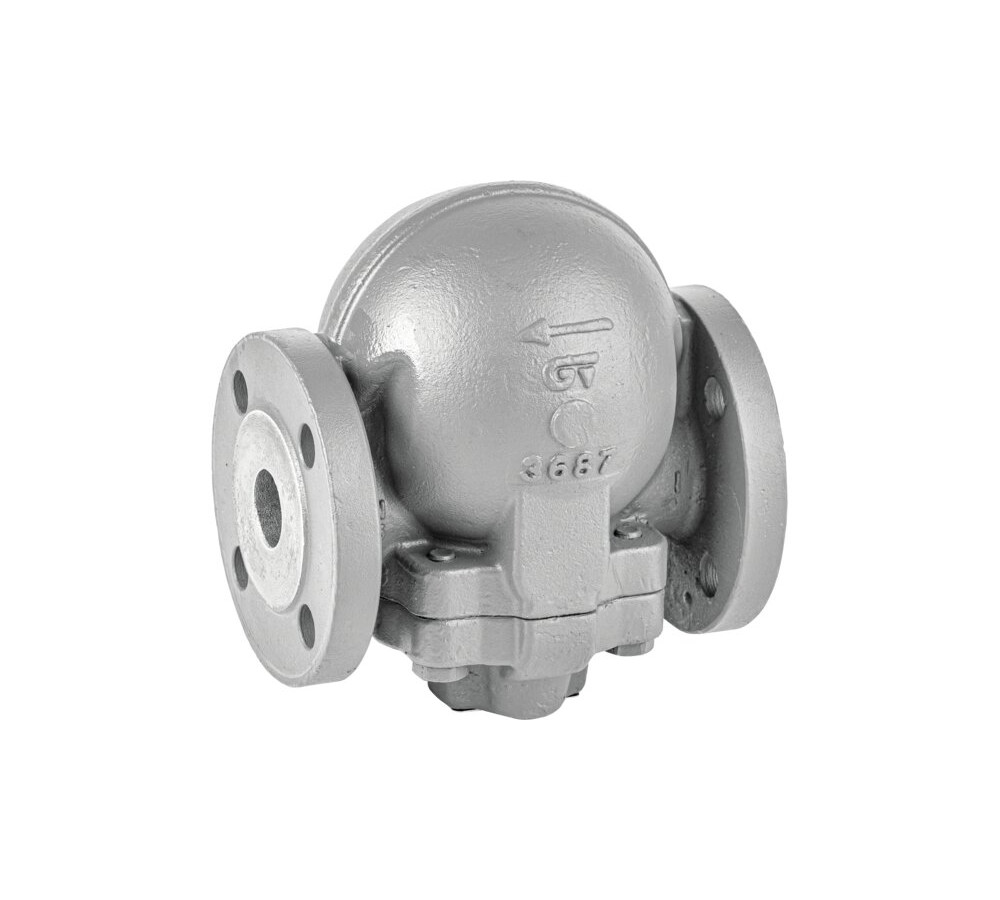

Ball float steam trap

Flanged ends according to EN 1092-1 PN16. Construction: Carbon steel 1.0619 (WCB). Internal parts made of stainless steel. Internal air vent assembly. Horizontal installation. Maximum working pressure PN16. Maximun differential pressure: 4,5 bar (045) or 10 bar (100). Maximun working temperature 250ºC.

Reference: 2286

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2286 04 045 BALL FLOAT STEAM TRAP PN16 DN 15 Dp 4.5 1 5.015 1/1
2286 04 100 BALL FLOAT STEAM TRAP PN16 DN 15 Dp 10 1 4.993 1/1
2286 05 045 BALL FLOAT STEAM TRAP PN16 DN 20 Dp 4.5 1 5.477 1/1
2286 05 100 BALL FLOAT STEAM TRAP PN16 DN 20 Dp 10 1 5.54 1/1
2286 06 045 BALL FLOAT STEAM TRAP PN16 DN 25 Dp 4.5 1 6.907 1/1
2286 06 100 BALL FLOAT STEAM TRAP PN16 DN 25 Dp 10 1 6.918 1/3
