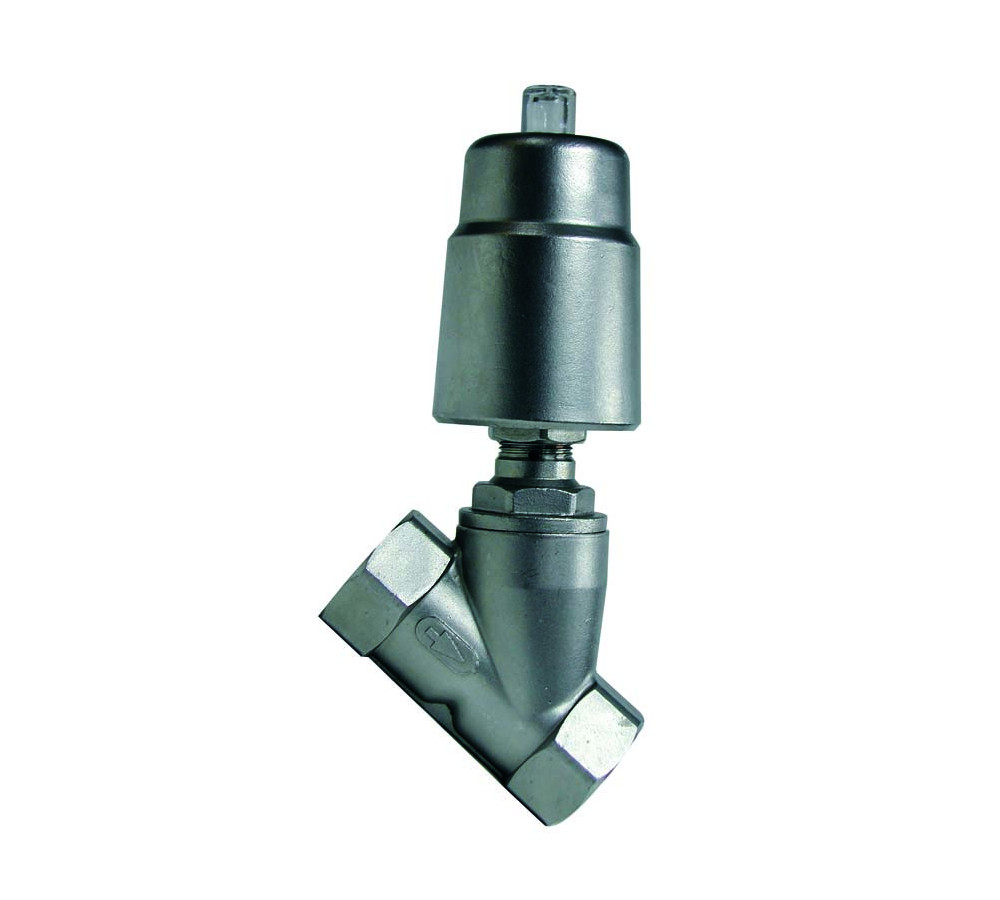

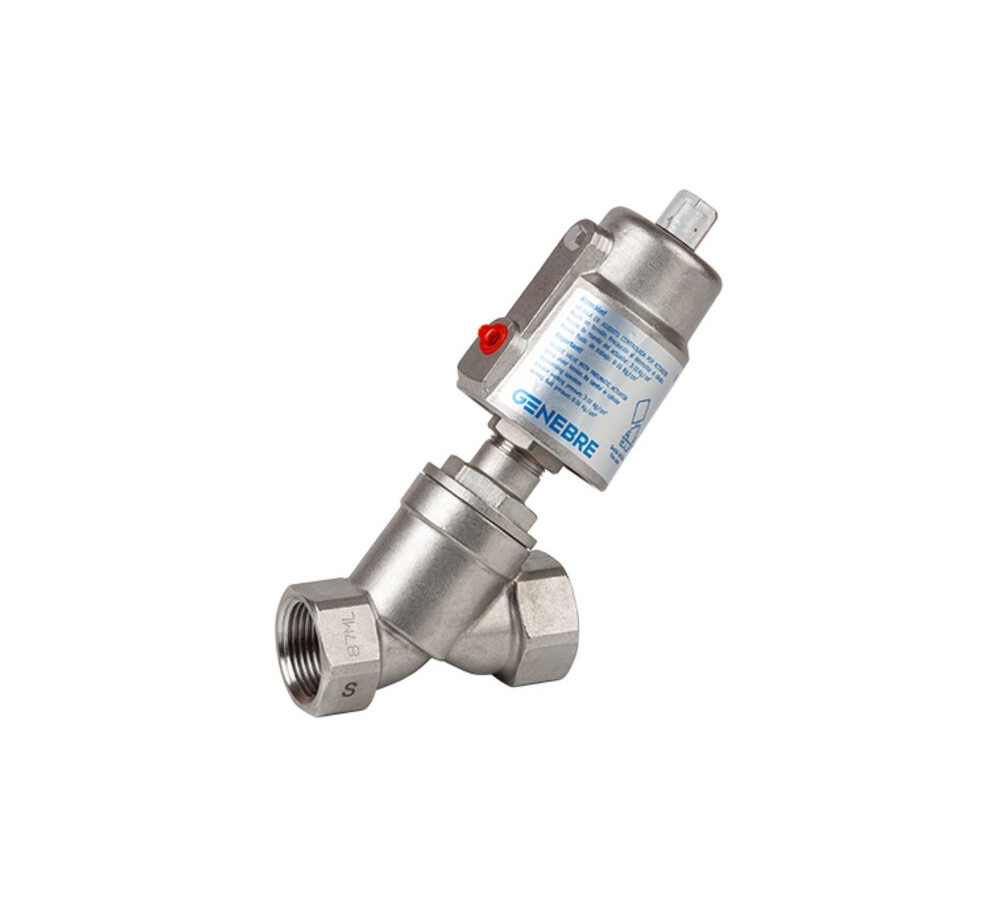

Slanted seat valve with spring return actuator

Also available in NPT thread (5060N).
Gas threaded ends, PN-16. Constr.: stainless steel AISI 316 investment casting. Actuator seal: NBR. Working temp. range: -10ºC +180ºC. Pressure control actuator: 3-10 kg/cm2.

Reference: 5060N

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5060N 04 SLANTED SEAT VALVE NPT 1/2" + SPRING RETURN ACTUATOR 1 0.973 1/13
5060N 05 SLANTED SEAT VALVE NPT 3/4" +SPRING RETURN ACTUATOR 1 1.07 1/16
5060N 06 SLANTED SEAT VALVE NPT 1" +SPRING RETURN ACTUATOR 1 1.328 1/12
5060N 07 SLANTED SEAT VALVE NPT 1 1/4" +SPRING RETURN ACTUATOR 1 2.426 1/8
5060N 08 SLANTED SEAT VALVE NPT 1 1/2" +SPRING RETURN ACTUATOR 1 2.6 1/8
5060N 09 SLANTED SEAT VALVE NPT 2" +SPRING RETURN ACTUATOR 1 3.482 1/6
