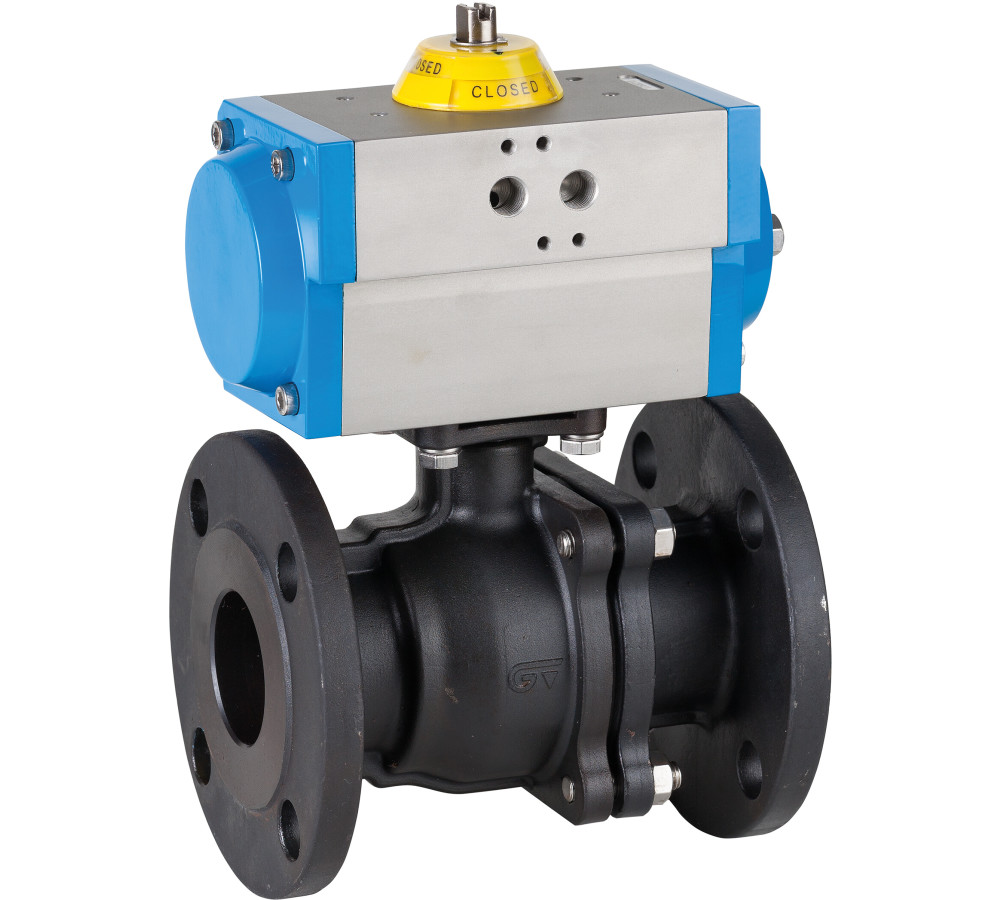

2 pieces ball valve with flanges

2 pieces ball valve with flanges. Direct mounting for actuators s/ISO 5211. Fire safe design. Antiestatic device. Body: carbon steel WCB (investment casting). Ball and stem: AISI 316. Seats: PTFE + 25 % Graphite. Stem o’ring: viton. Max. pressure: 19 kg/cm2. Temp. -30ºC +220ºC. Manually operated by handle with locking system. With Gen-Air actuator

Reference: 5526A

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5526A 04 73 V. 2526A 1/2" WITH GN-15/S3 1 3.47 1/1
5526A 05 74 V. 2526A 3/4" WITH GN-15/S4 1 4.12 1/1
5526A 06 49 V. 2526A 1" WITH GN-17/S4 1 5.44 1/1
5526A 07 76 V. 2526A 1"1/4 WITH GN-20/S4 1 7.15 1/1
5526A 08 77 V. 2526A 1"1/2 WITH GN-25/S4 1 10.28 1/1
5526A 09 78 V. 2526A 2" WITH GN-30/S4 1 13.97 1/1
5526A 10 79 V. 2526A 2"1/2 WITH GN-35/S3 1 22.42 1/1
5526A 11 80 V. 2526A 3" WITH GN-40/S4 1 28.51 1/1
5526A 12 81 V. 2526A 4" WITH GN-45/S4 1 45.52 1/1
5526A 14 83 V. 2526A 6" WITH GN-55/S5 1 82.3 1/1
