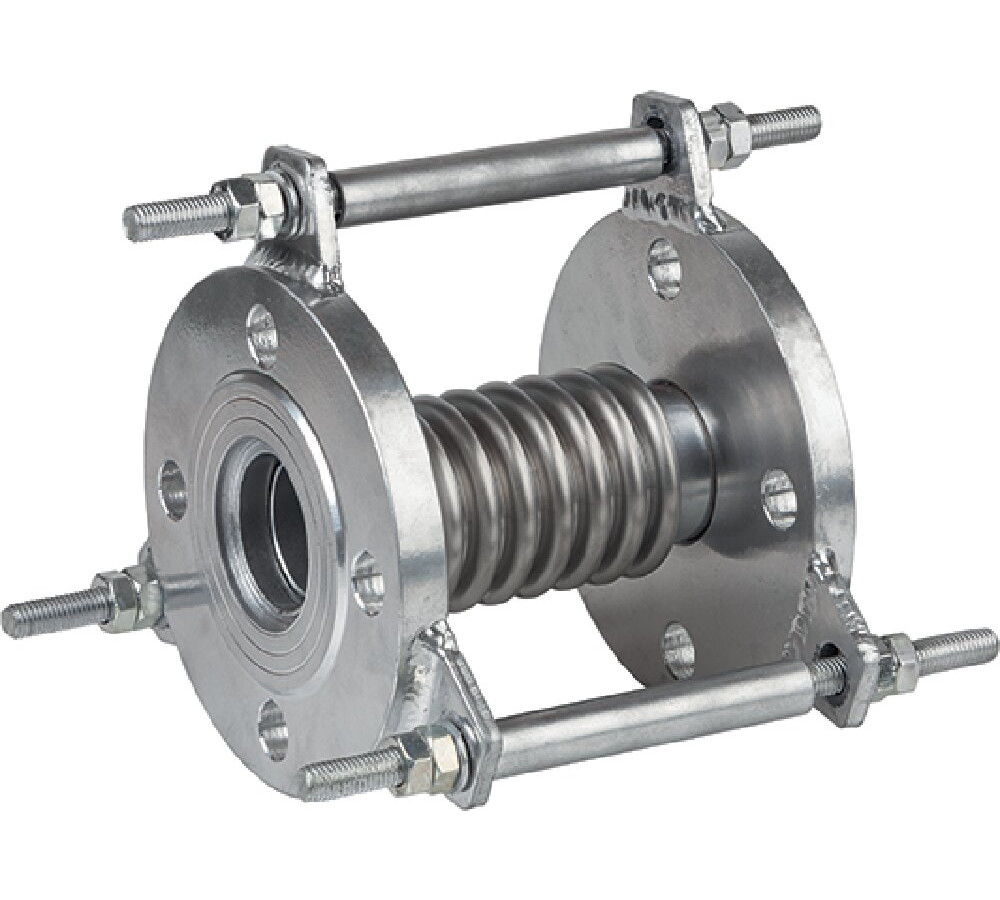

Metal expansion joint with internal liner

Flanged ends DIN PN 16. Internal liner, bellows and ends: stainless steel AISI 304. Max. working pressure: 16 bar. Max. temp. 300ºC. Limit rods are used to protect from movements in excess (from 2”).

Reference: 2835E

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2835E 06 METAL EXPANSION JOINT WITH INTERNAL LINER 1" 1 2.29 1/1
2835E 07 METAL EXPANSION JOINT WITH INTERNAL LINER 1 3.3 1/1
2835E 08 METAL EXPANSION JOINT WITH INTERNAL LINER 1 3.767 1/1
2835E 09 METAL EXPANSION JOINT WITH INTERNAL LINER 2" 1 6.139 1/1
2835E 10 METAL EXPANSION JOINT WITH INTERNAL LINER 2"1/2 1 7.991 1/1
2835E 11 METAL EXPANSION JOINT WITH INTERNAL LINER 3" 1 8.826 1/1
2835E 12 METAL EXPANSION JOINT WITH INTERNAL LINER 4" 1 10.934 1/1
2835E 13 METAL EXPANSION JOINT WITH INTERNAL LINER 5" 1 14.86 1/1
2835E 14 METAL EXPANSION JOINT WITH INTERNAL LINER 6" 1 20.417 1/1
2835E 16 METAL EXPANSION JOINT WITH INTERNAL LINER 8" 1 25.323 1/1
