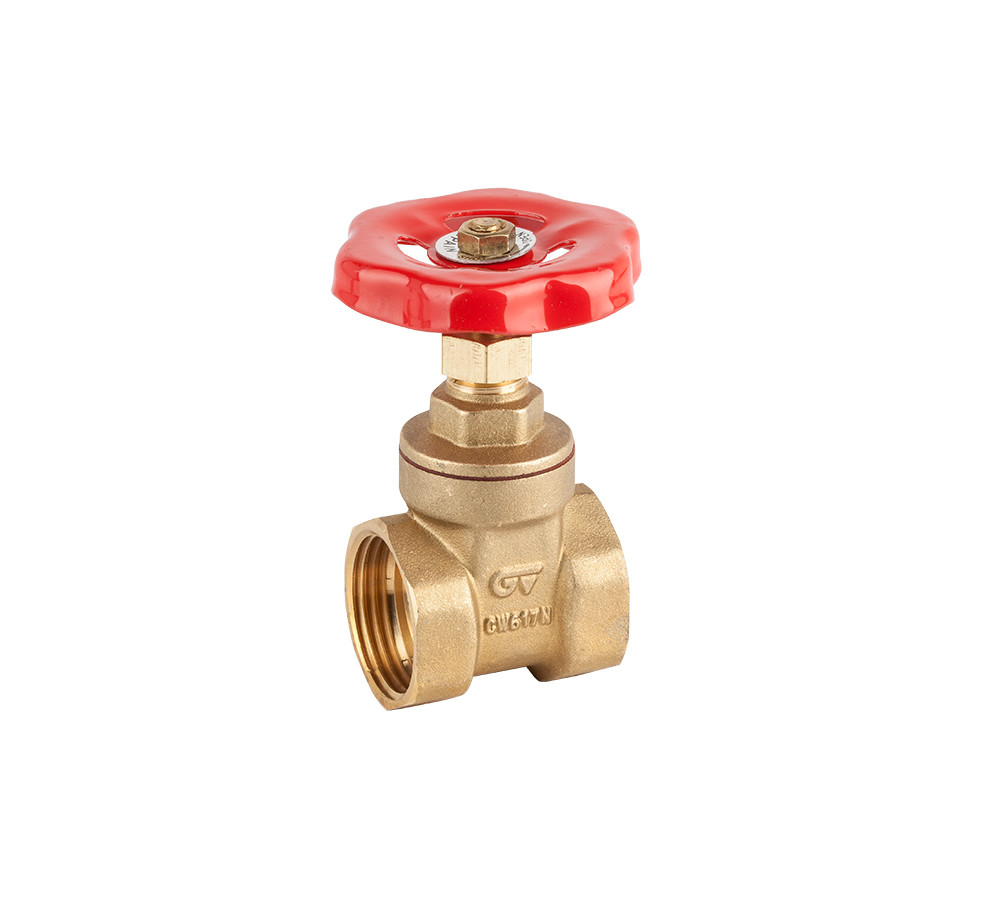

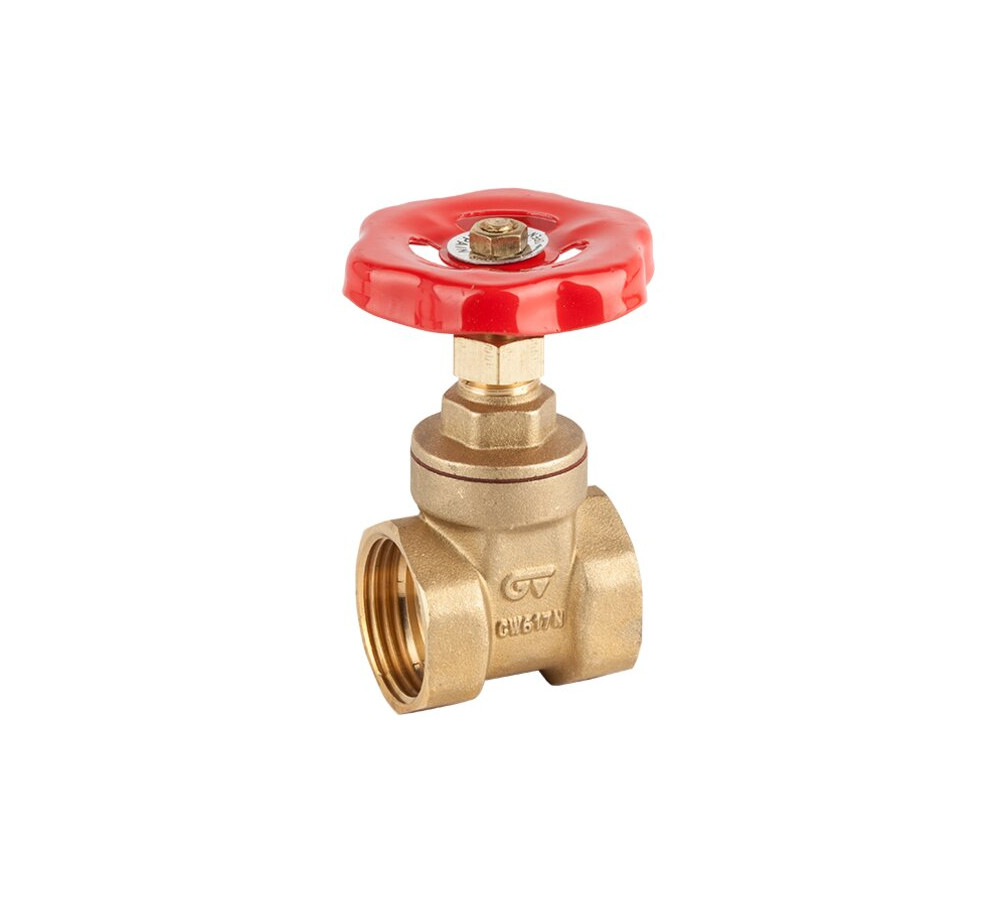

Brass gate valve NPT thread

PN 10/16. Reduce bore. Body brass UNE-EN 12165. Max. temp. 110ºC. NPT threaded ends F-F - ANSI B 1.20.1.

Reference: 3222

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3222 04 BRASS GATE VALVE NPT 1/2" 16 0.164 16/96
3222 05 BRASS GATE VALVE NPT 3/4" 12 0.213 12/96
3222 06 BRASS GATE VALVE NPT 1" 8 0.293 8/48
3222 07 BRASS GATE VALVE NPT 1 1/4" 6 0.471 6/36
3222 08 BRASS GATE VALVE NPT 1 1/2" 4 0.622 4/48
3222 09 BRASS GATE VALVE NPT 2" 2 1.046 2/24
3222 10 BRASS GATE VALVE NPT 2 1/2" 1 1.944 1/12
3222 11 BRASS GATE VALVE NPT 3" 1 2.531 1/8
3222 12 BRASS GATE VALVE NPT 4" 1 4.501 1/4
