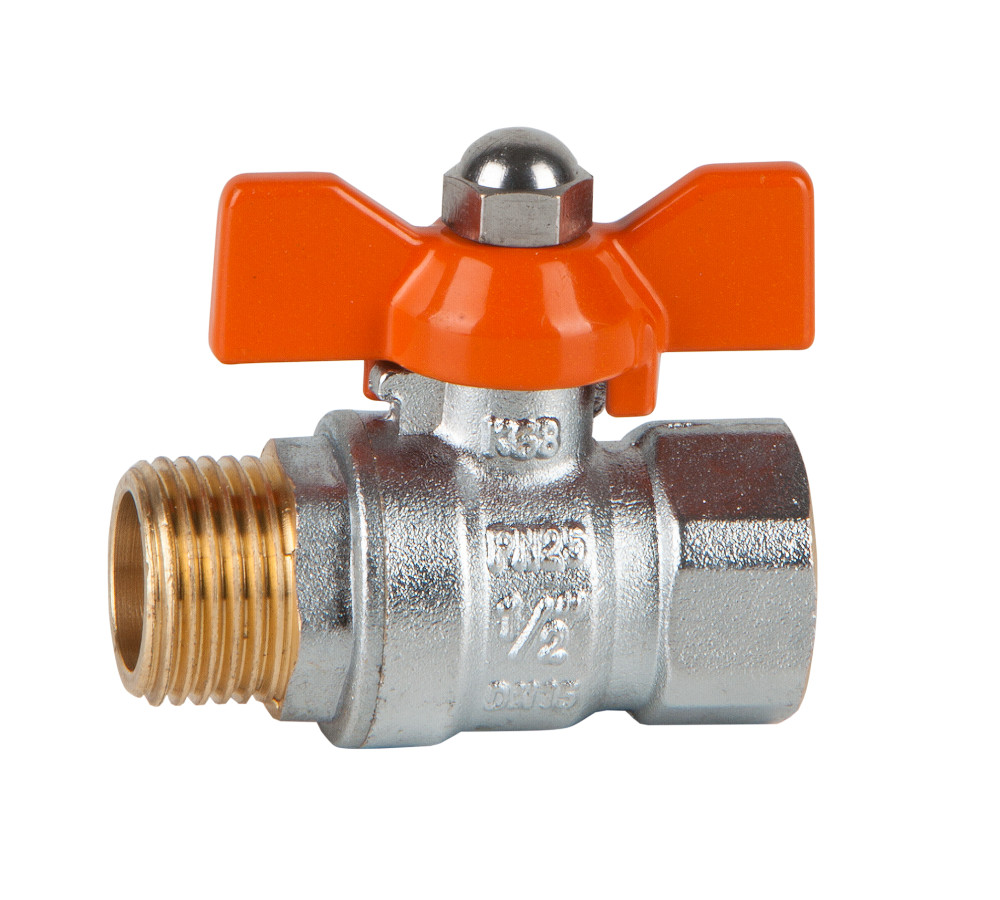

Ball valve M-F orange butterfly handle

PN 25. Full bore. Body chrome plated brass UNE-EN 12165. Seats PTFE. Gas threaded ends M-F, ISO 228/1. Max. temp. 150ºC. Manual control lever aluminium handle.

Reference: 3136

See Technical Sheet
Ball valve
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3136 02 SOLAR BALL V. BUT. M-H 1/4" 12 0.1 12/240
3136 03 SOLAR BALL V. BUTT. M-F 3/8" 12 0.098 12/240
3136 04 SOLAR BALL V. BUT. M-F 1/2" 10 0.137 10/180
3136 05 SOLAR BALL V. BUT. M-F 3/4" 6 0.233 6/108
3136 06 SOLAR BALL VALVE 1" BUTT. H. 5 0.364 5/60
