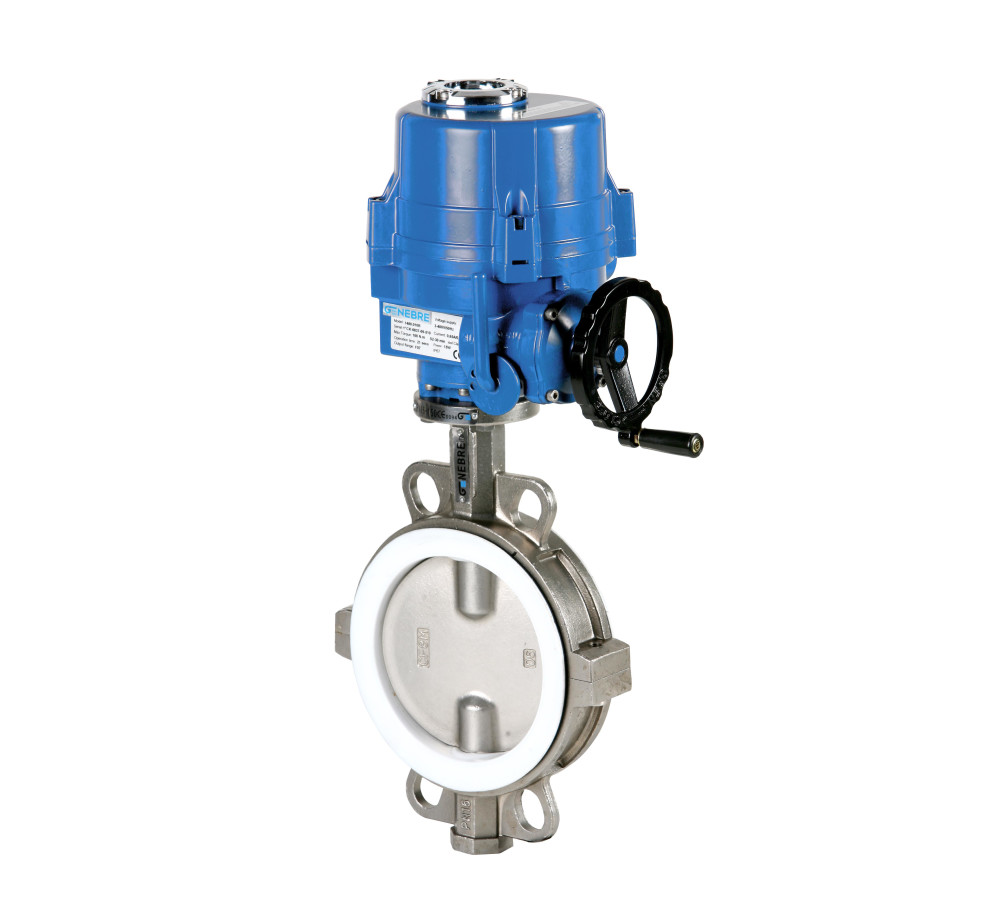

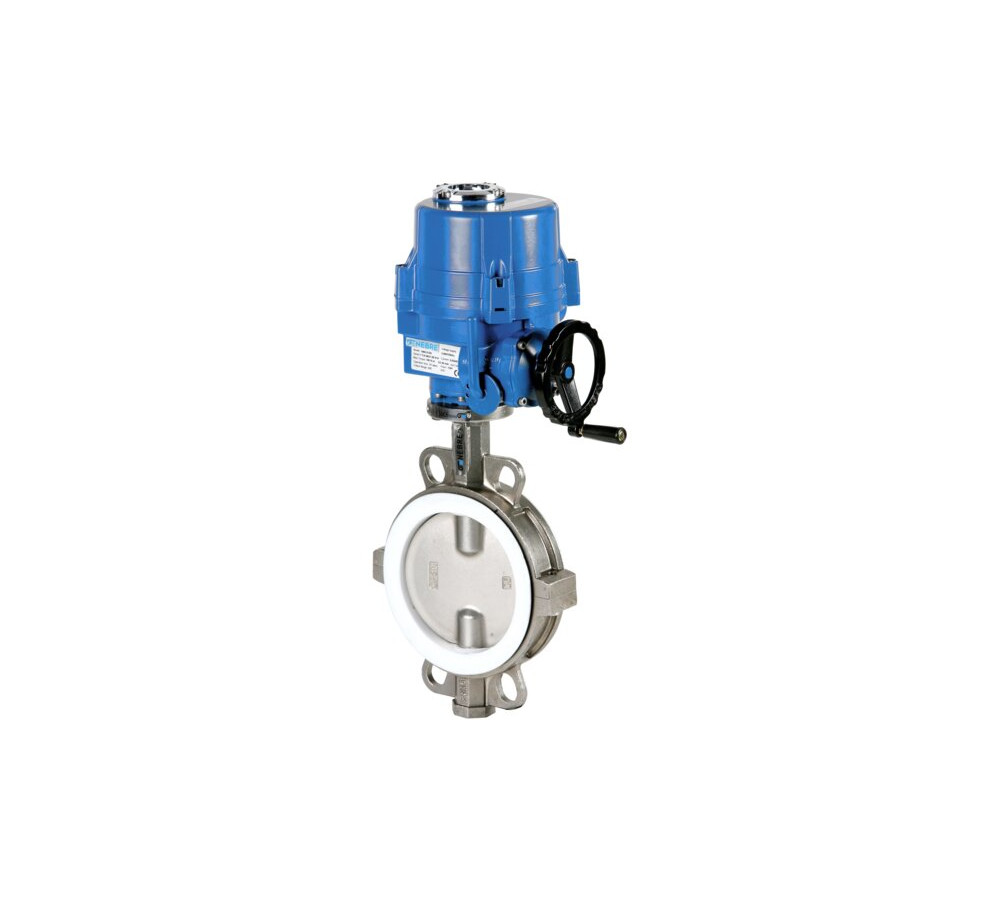

Stainless steel butterfly valve wafer type

Stainless steel butterfly valve wafer type.
Body, stem and disc: stainless steel 316 (CF8M).
Seat: PTFE with EPDM backup ring. Temp. -25ºC +180ºC.
Manually operated by stainless steel handle until 5”, from 5” with gear operator. Face to face according to DIN 3202 K1. Working pressure: 10 bar

-13ºF + 356ºF
With triphasic servomotor (3-400 V).
Other voltage please consult us.

Reference: 5634

Valve Technical Sheet
Actuator three phase data sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5634 12 58 V. 2104 4" WITH ACT. GE-010 1 1 1/1
5634 13 59 V. 2104 5" WITH ACT. GE-015 1 0.01 1/1
5634 14 55 V. 2104 6" WITH ACT. GE-025 1 0.01 1/1
5634 16 62 V. 2104 8" WITH ACT. GE-050 1 1 1/1
5634 18 60 V. 2104 10" W/ACT. GE-050 1 41.5 1/1
