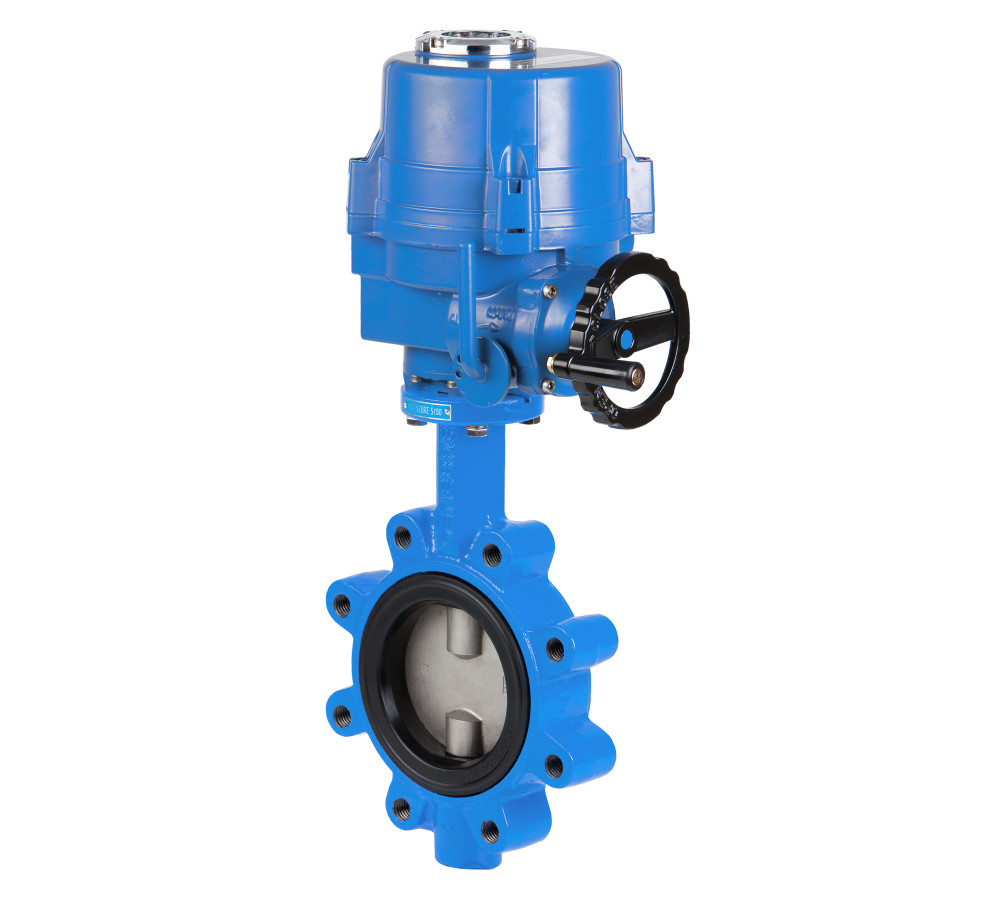

Butterfly valve DIN LUG type

Butterfly valve DIN LUG type.
PN 16 ≤ DN 150 – PN 10 ≥ DN 200.
Body: ductile iron GGG-40. Disc: CF8M (316).
Seat: EPDM. Stem o’ring NBR.
Working temperature -20ºC +120ºC.
Mounting actuator according to ISO 5211 std.
Handle up to 10” with gear operator from 12”.
With triphasic servomotor (3-400 V).
Other voltage please consult us.

Reference: 5608

Valve Technical Sheet
Actuator three phase data sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5608 14 59 V. 2108 6" WITH GE015 1 29.35 1/1
5608 18 56 V. 2108 10" WITH GE035 1 49.55 1/1
5608 20 62 V. 2108 12" WITH GE050 1 76 1/1

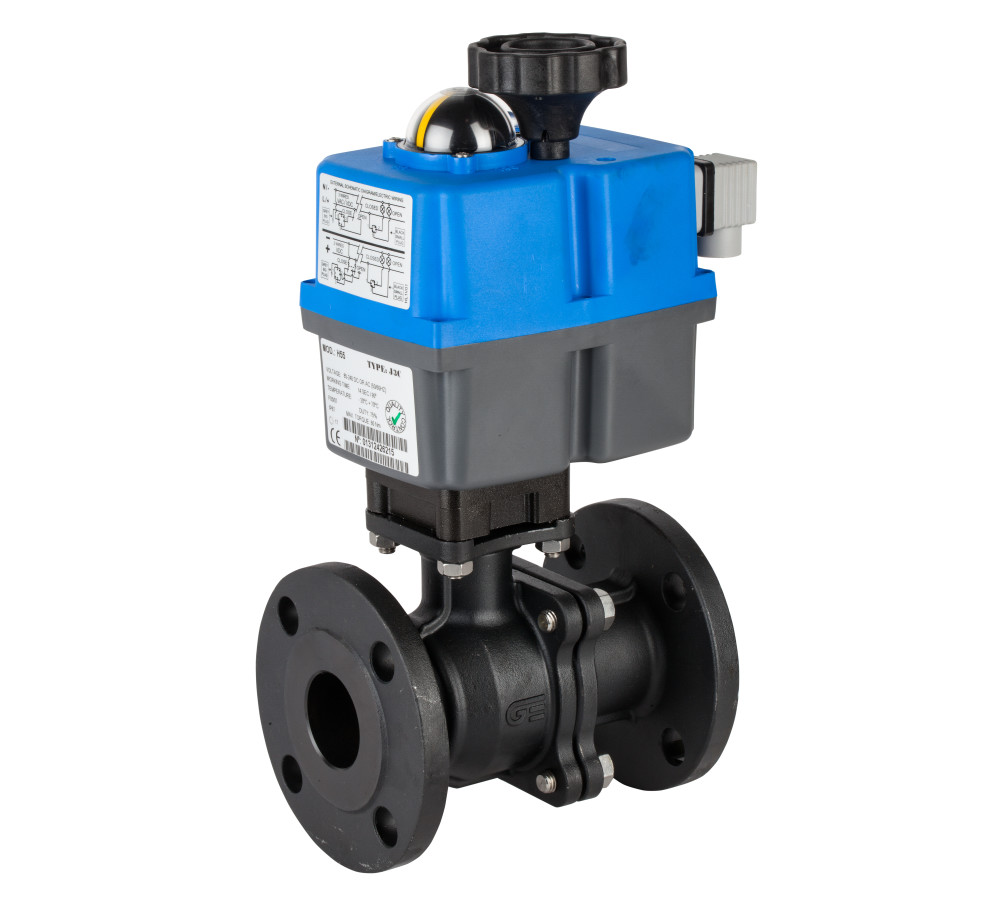

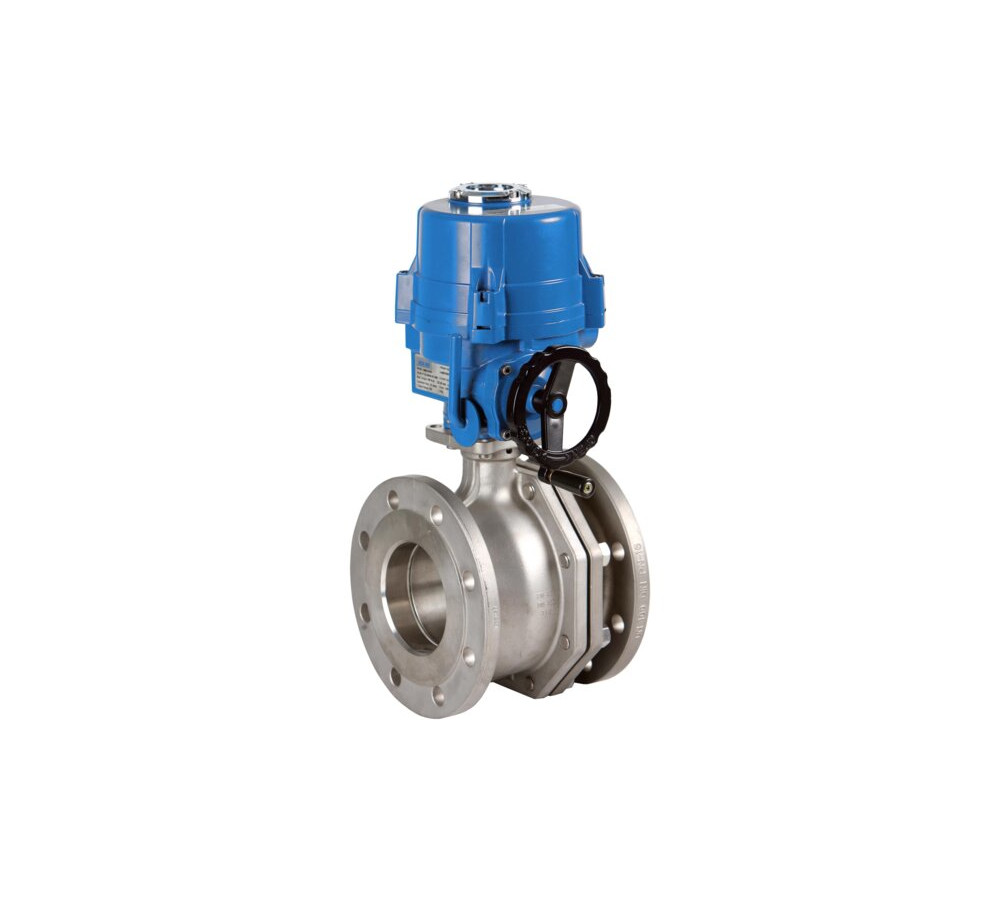

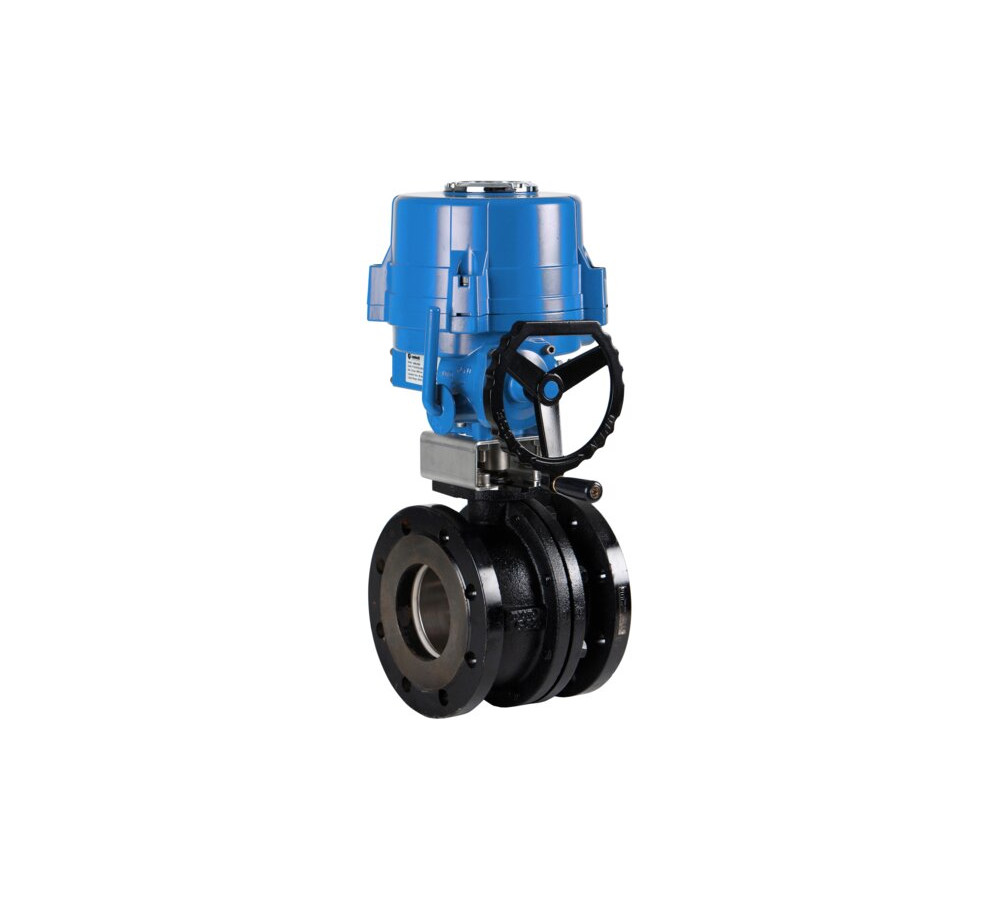

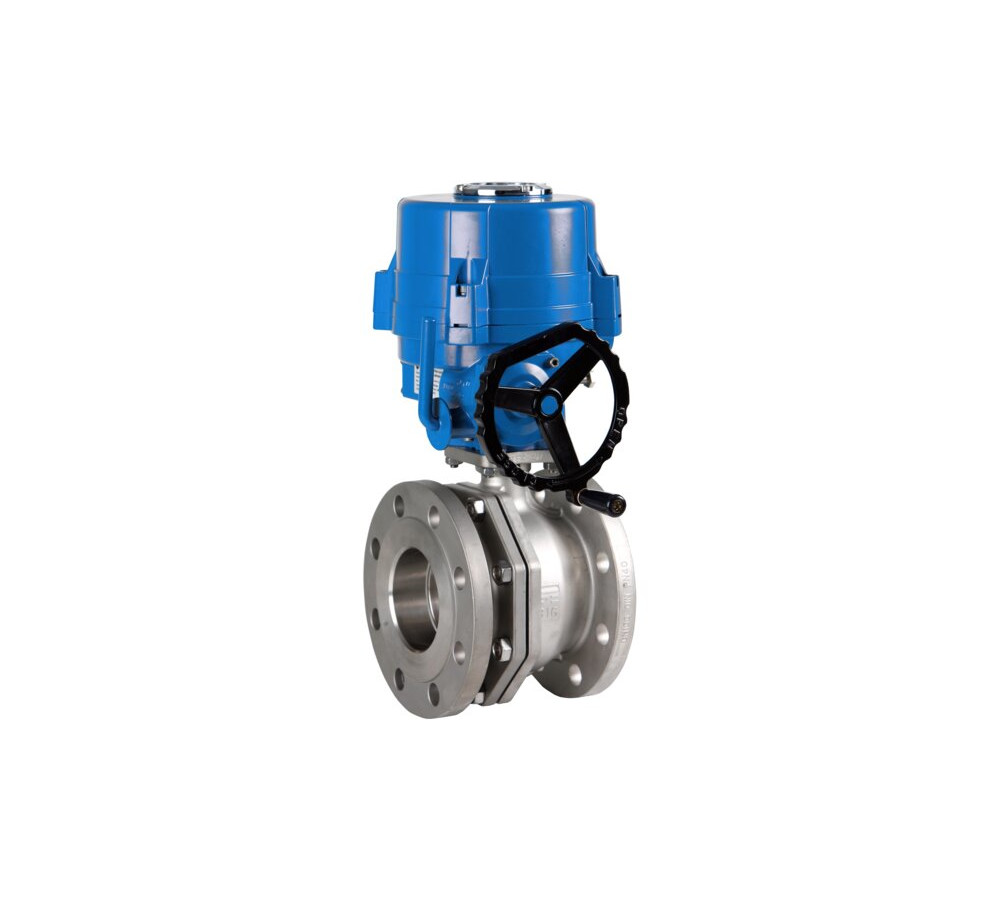

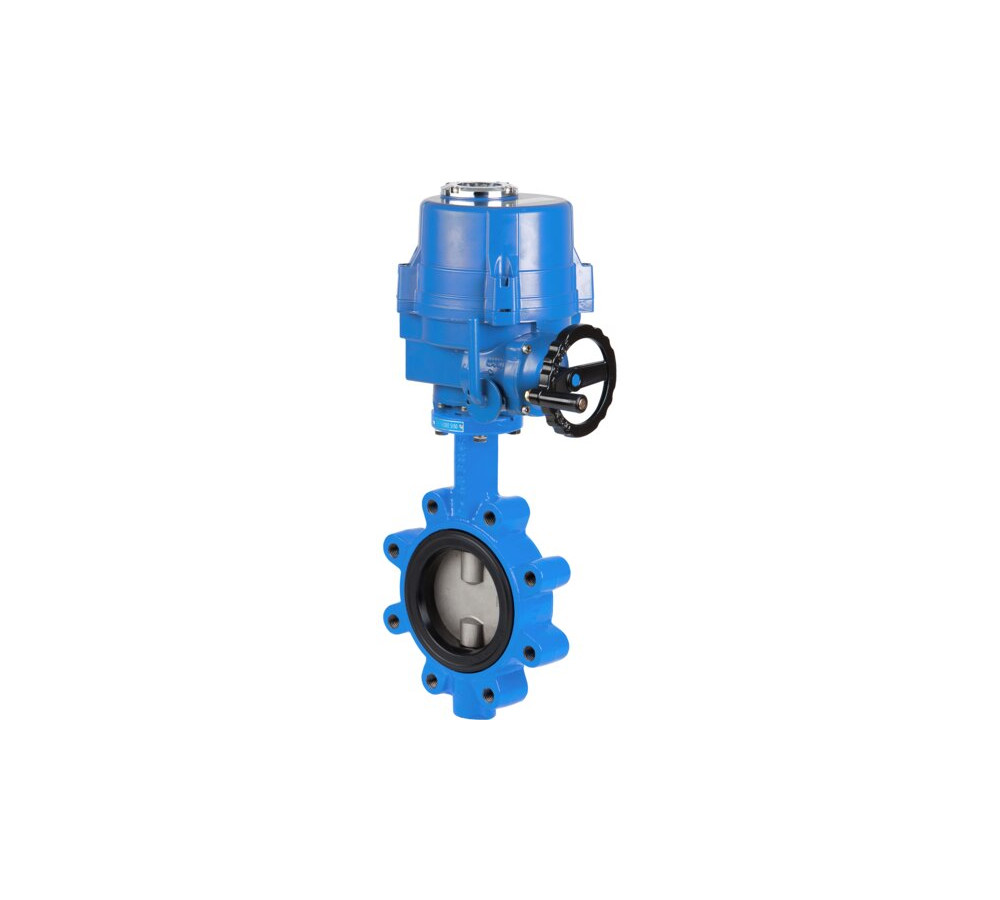

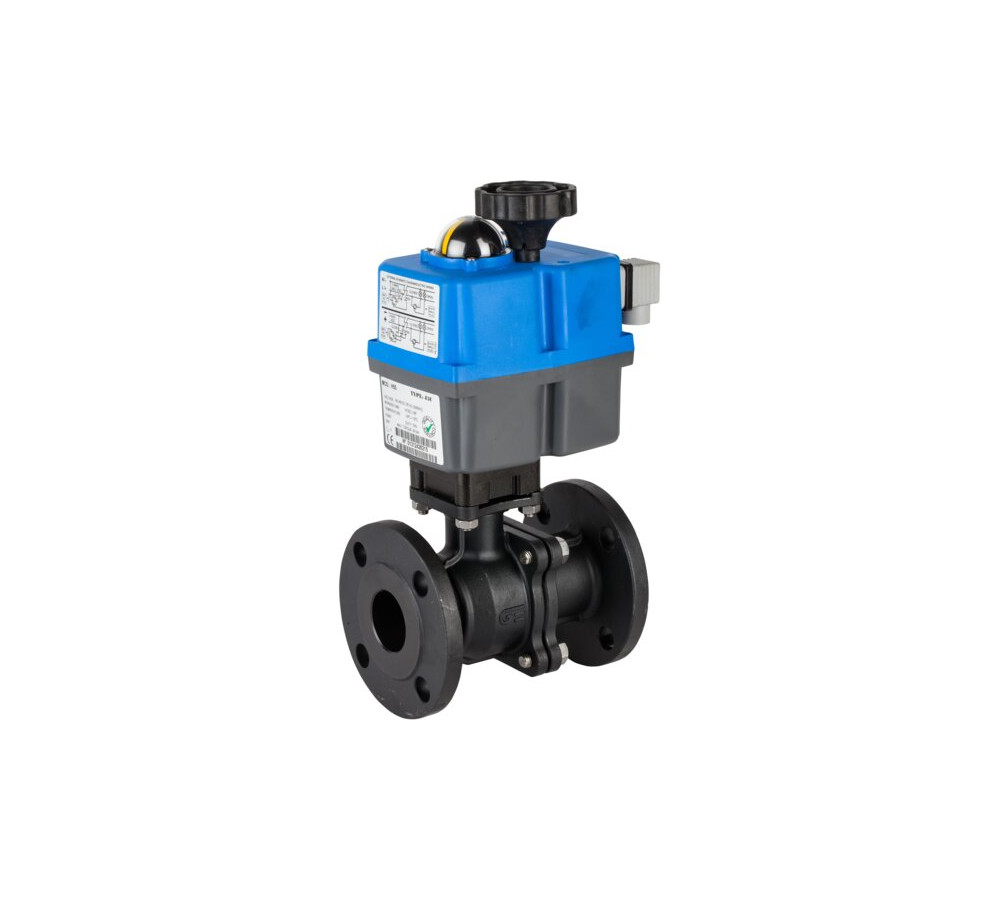

Related products
