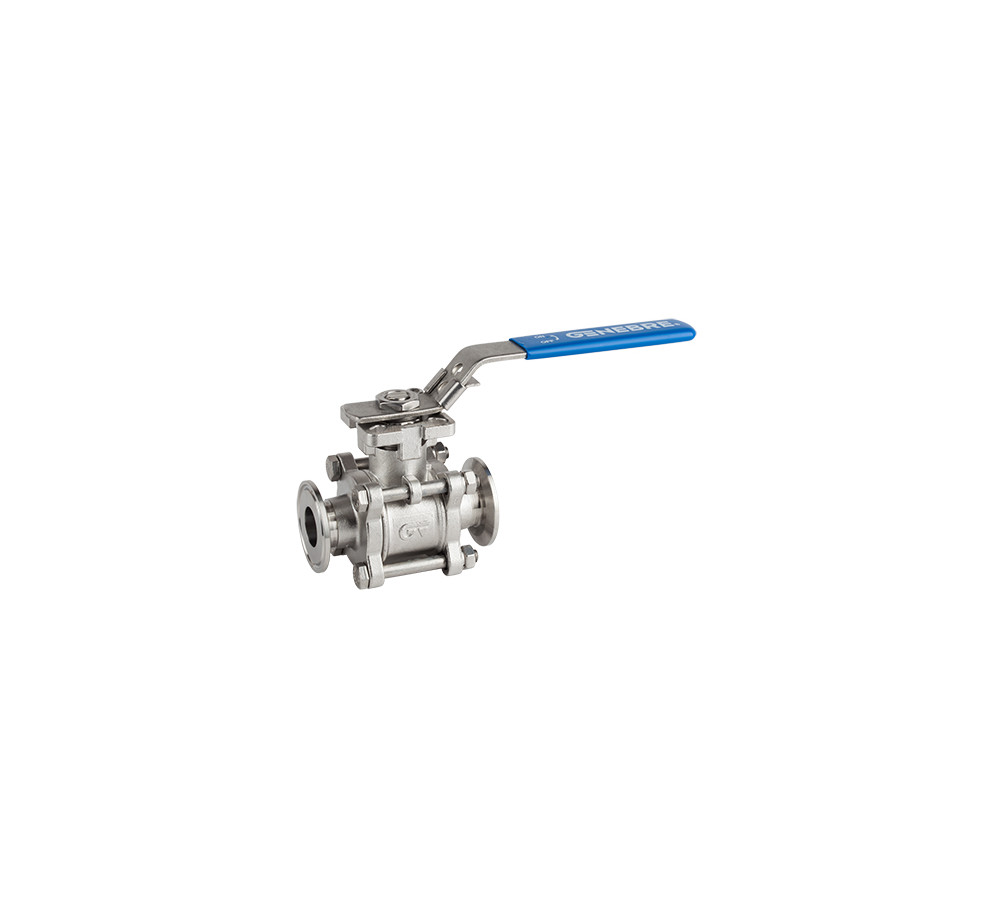

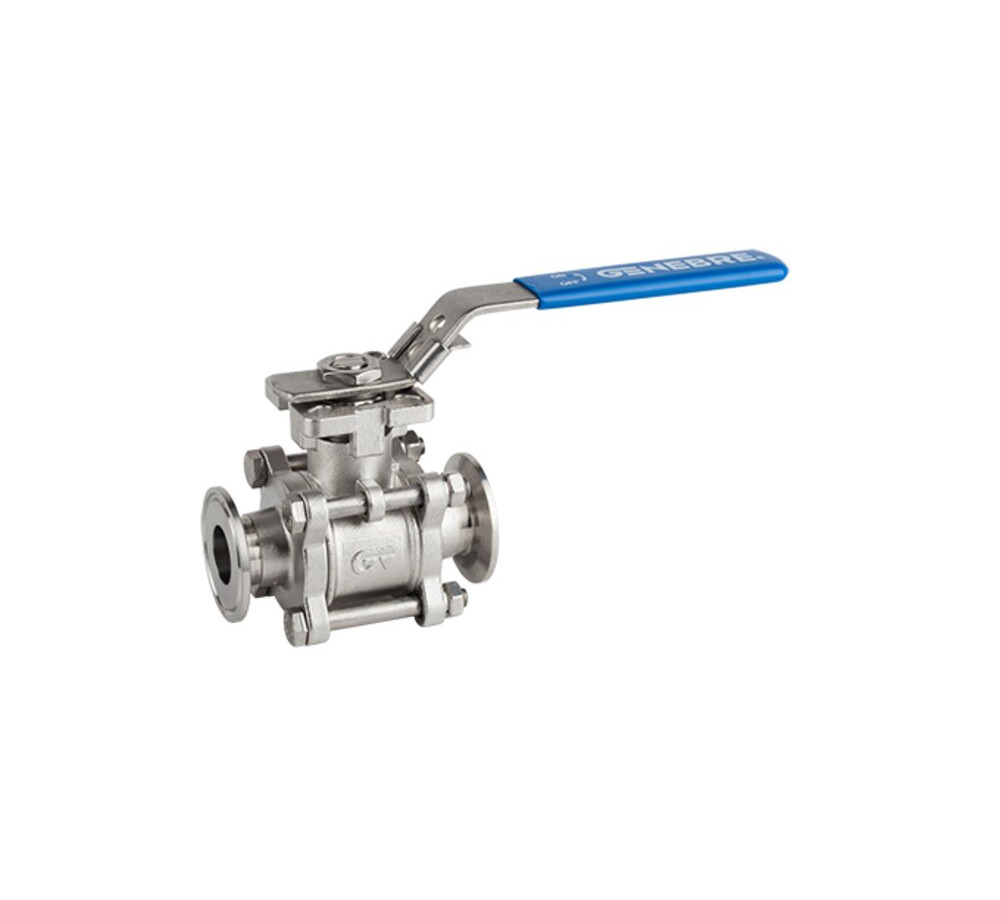

3 pcs ball valve clamp ends

Stainless steel body CF8M (316). Investment casting integral seats and stem: PTFE PN-25 (400 wog). Temp: -25ºC +180ºC. Manually operated by handle with safety. Locking system. Direct mounting according ISO 5211.

Reference: 2933

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2933 04 3PC B.V. CLAMP ENDS 1/2" 1 0.559 8/32
2933 05 3PC B.V. CLAMP ENDS 3/4" 1 0.745 6/24
2933 06 3PC B.V. CLAMP ENDS 1" 1 1.207 4/16
2933 08 3 PC B.V. CLAMP ENDS 1 1/2" 1 2.536 2/8
2933 09 3PC B.V. CLAMP ENDS 2" 1 3.556 1/4
2933 10 3 PC B.V. CLAMP ENDS 2 1/2" 1 7.887 1/2
2933 11 3PC B.V. CLAMP ENDS 3" 1 11.402 1/1
2933 12 3PC B.V. CLAMP ENDS 4" 1 21.246 1/1
