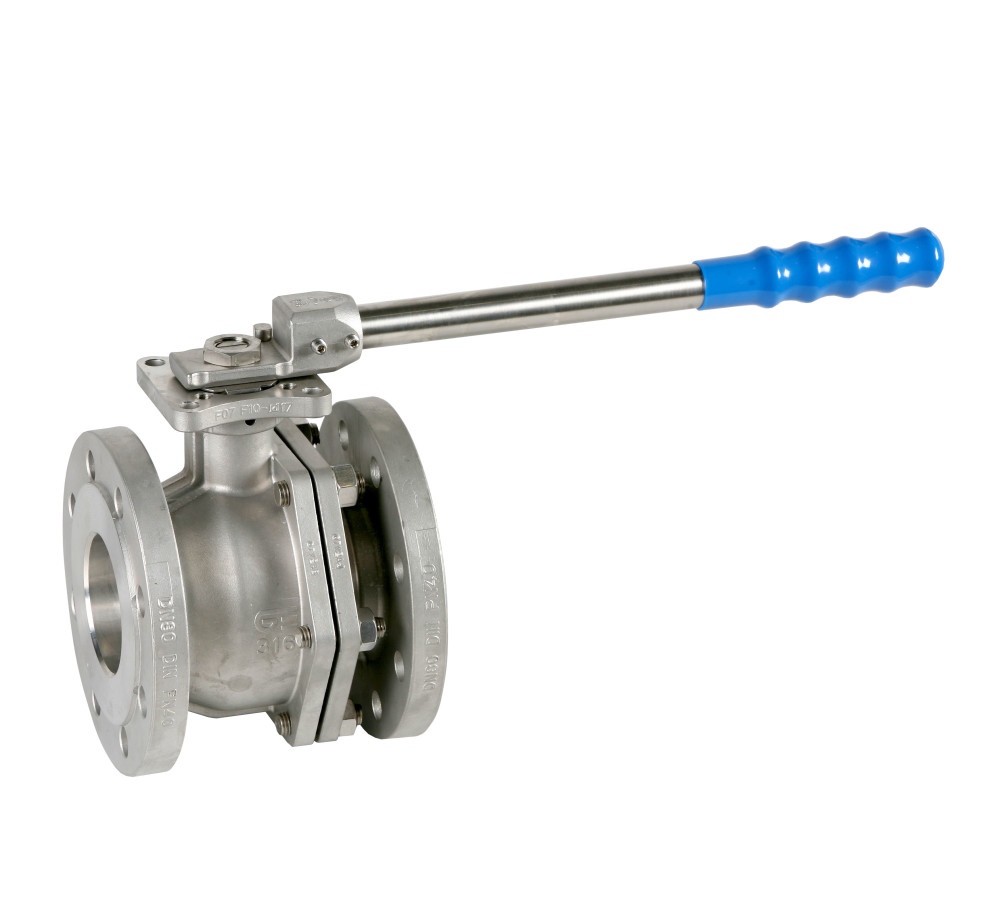

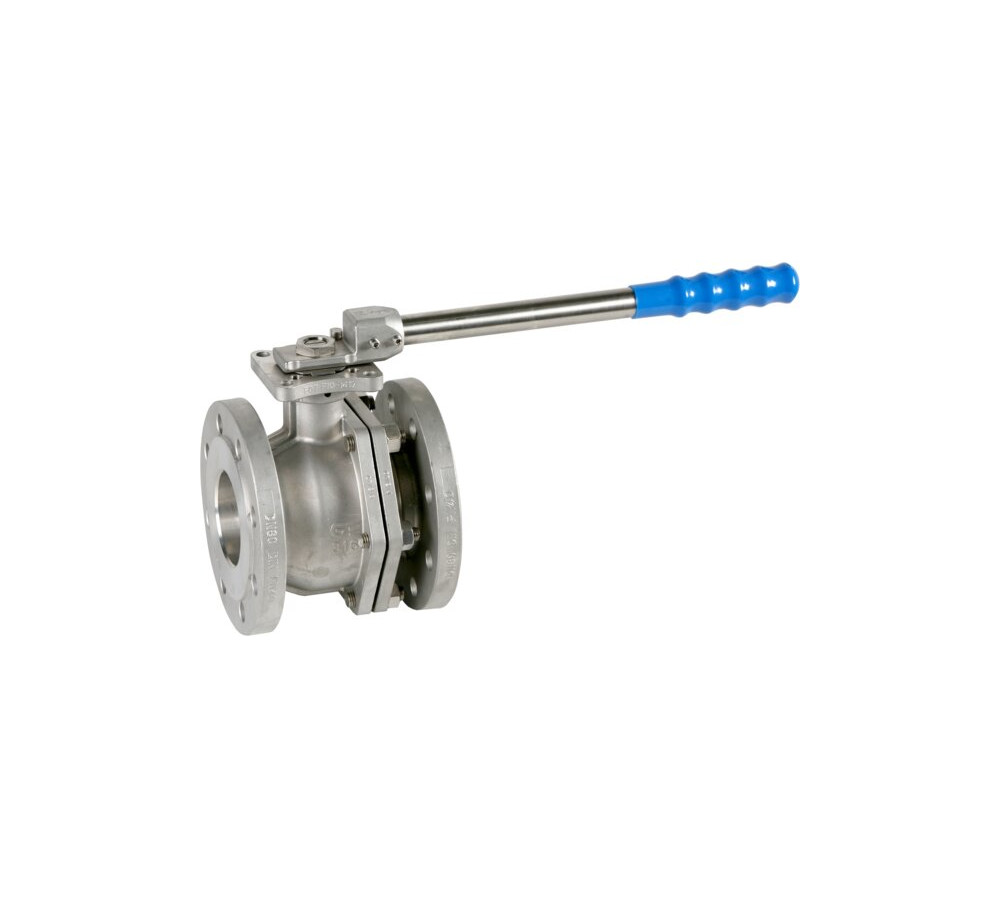

2 pcs. Full bore ball valve FIRE SAFE Certification

Direct mounting for actuators ISO 5211. Body: stainless steel. CF8M (316). Seats: PTFE + 15% GF. Stem o’ring: viton. Max. pressure: 40 BAR. temp.: -30ºC +180ºC. Manually operated by handle. L: DIN 3202 F-4 DN 65 DN0 100. F-5 DN 125 DN 200.

Reference: 2529

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2529 10 FLANGES DIN PN-40 2 1/2" 1 15.95 1/1
2529 11 2PC FULL BORE BALL VALVE S/S 316 FLANGES DIN 3" PN40 1 20.47 1/1
2529 12 2PC FULL BORE BALL VALVE S/S 316 FLANGES DIN 4" PN40 1 29.39 1/1
2529 13 2PC FULL BORE BALL VALVE FLANGES DIN 5" PN40 1 52.5 1/1
2529 14 FLANGES DIN PN-40 6" 1 71.45 1/1
