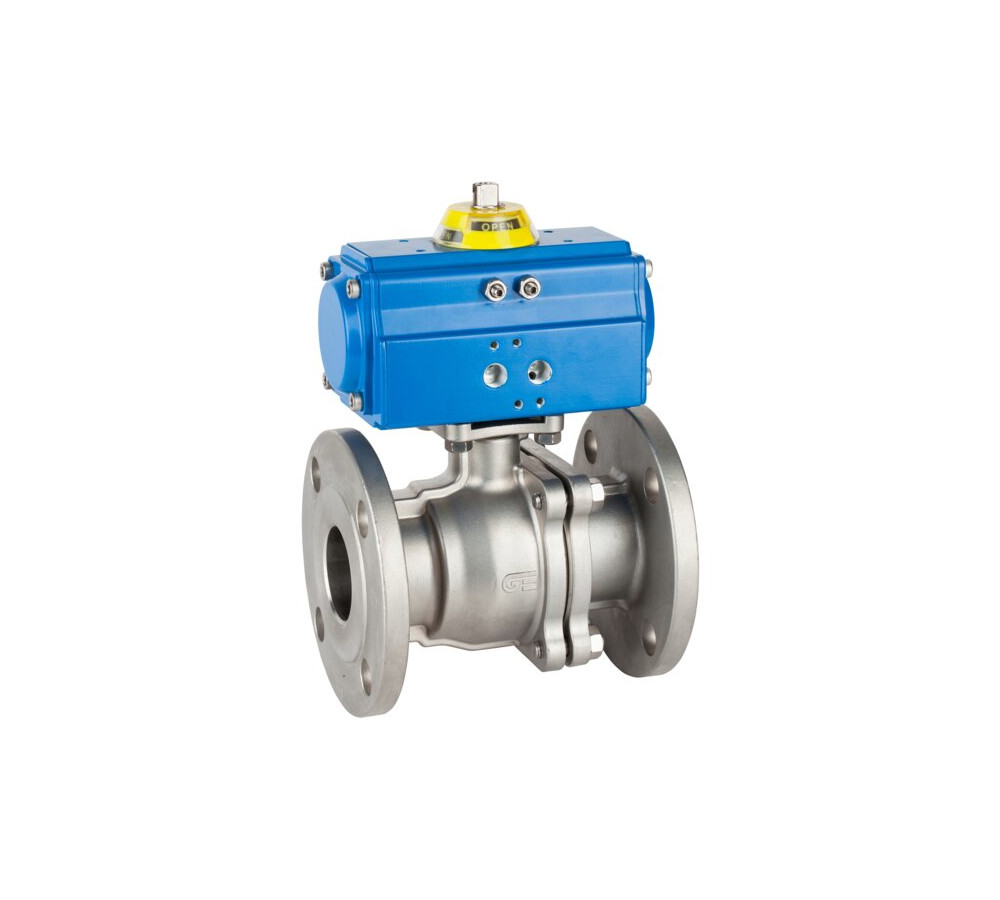

2 pieces full bore ball valve / Gen-Air Actuator

2 pieces full bore ball valve. Body: Stainless steel. CF8M (316) investment casting.
Seats: PTFE + 15% GF stem o’ring: viton. Antiestatic device.
Max. pressure: 40/16 BAR depending on size.
Temp.: -30ºC +180ºC. manually operated by handle.
L: DIN 3202 F-4 DN 15 DN 100 F-5 DN 125 DN 200.
With Gen-Air Actuator

Reference: 5528

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5528 04 73 V. 2528 1/2" WITH GN-15/S3 1 4.22 1/1
5528 05 74 V. 2528 3/4" WITH GN-15/S4 1 5.07 1/1
5528 06 49 V. 2528 1" WITH GN-17/S4 1 6.34 1/1
5528 07 76 V. 2528 1"1/4 WITH GN-20/S4 1 9 1/1
5528 08 77 V. 2528 1"1/2 WITH GN-25/S4 1 11.48 1/1
5528 09 78 V. 2528 2" WITH GN-30/S4 1 15.07 1/1
5528 10 79 V. 2528 2"1/2 WITH GN-35/S3 1 23.77 1/1
5528 11 80 V. 2528 3" WITH GN-40/S4 1 29.56 1/1
5528 12 81 V. 2528 4" WITH GN-45/S4 1 41.27 1/1
5528 13 82 V. 2528 5" WITH GN-55/S4 1 78.65 1/1
5528 13 97 2PC FULL BORE B.V. ACT.PNEUM. 1 70.13 1/1
5528 14 83 V. 2528 6" WITH GN-55/S5 1 97.85 1/1
5528 16 93 V. 2528 8" WITH GN-65/S5 1 163.75 1/1
